Vacuum Pump: Service and Repair

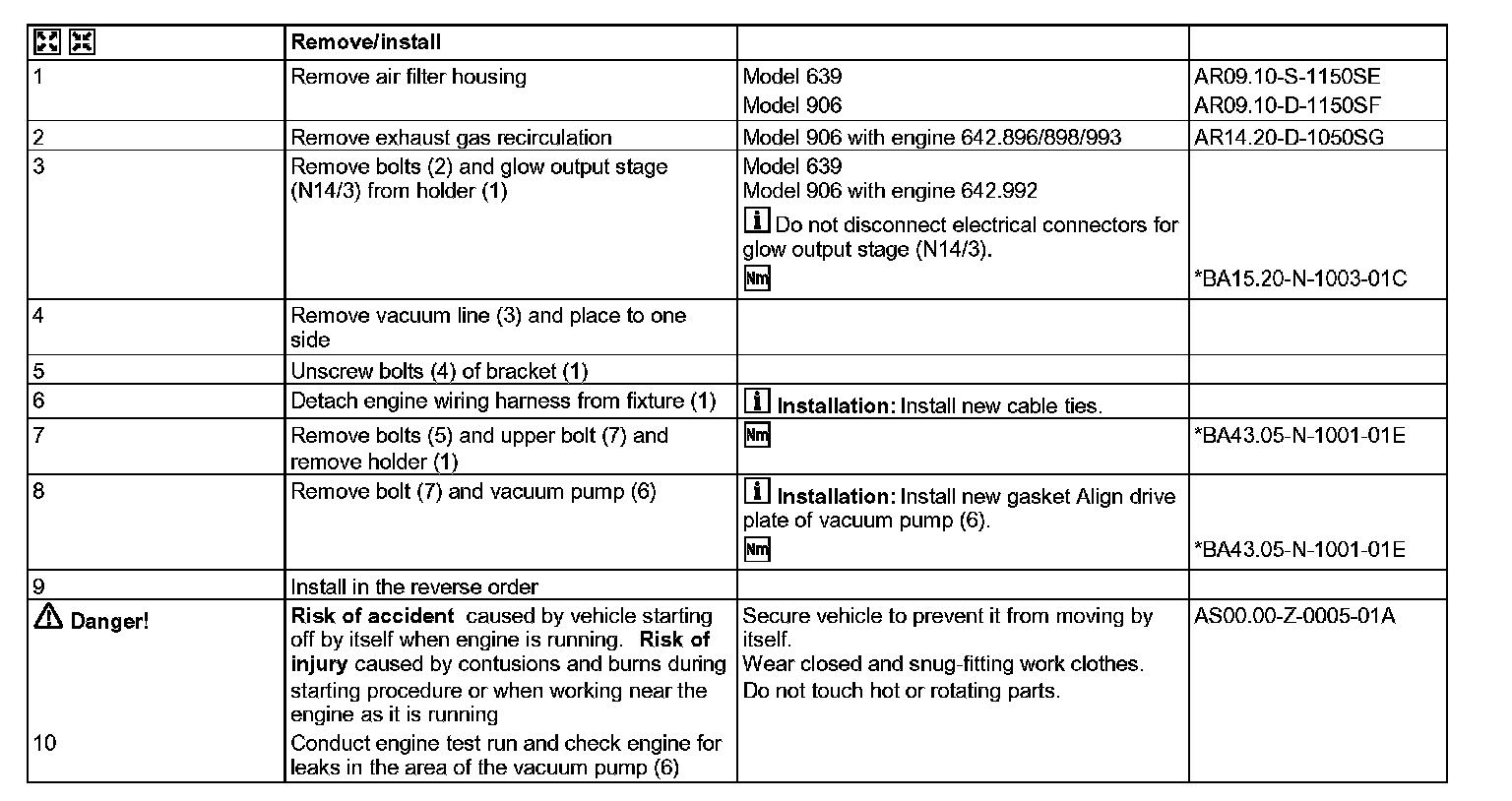

AR43.05-S-1320SE Remove/Install Vacuum Pump

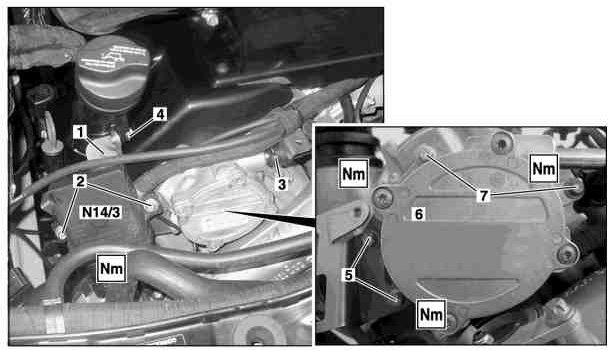

Shown on model 639

1 Bracket
2 Bolts (model 639, model 906 with engine 642.992)
3 Vacuum line
4 Screw
5 Bolts

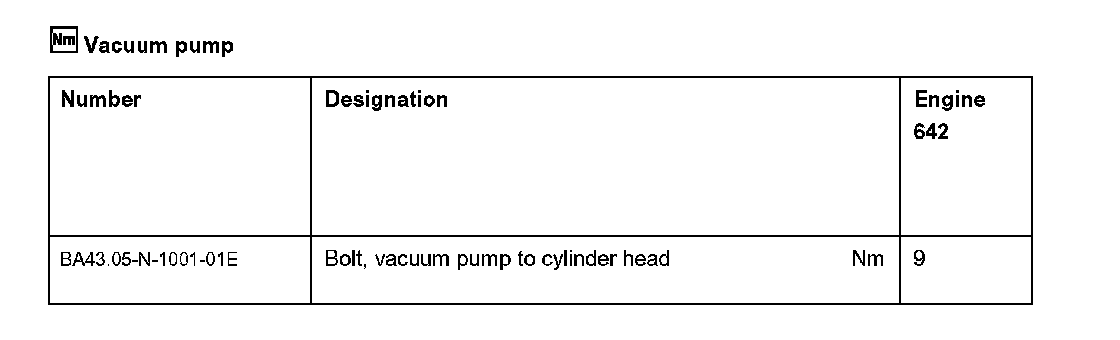

6 Vacuum pump
7 Bolts

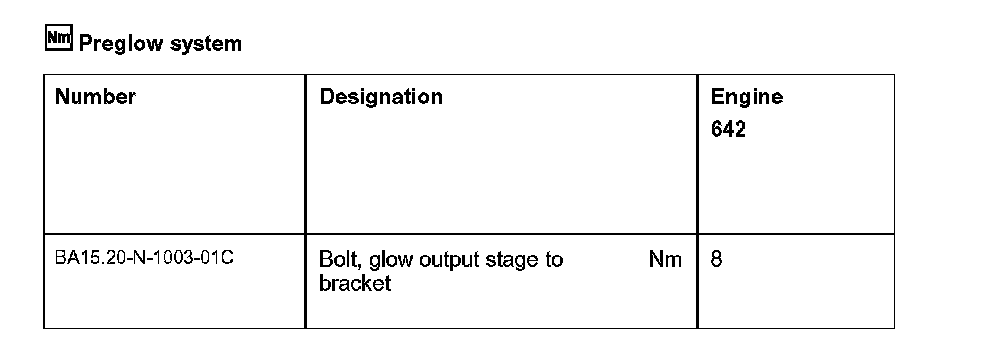

N14/3 Glow output stage (model 639, model 906 with engine 642.992)
