Vacuum Brake Booster Check Valve: Testing and Inspection

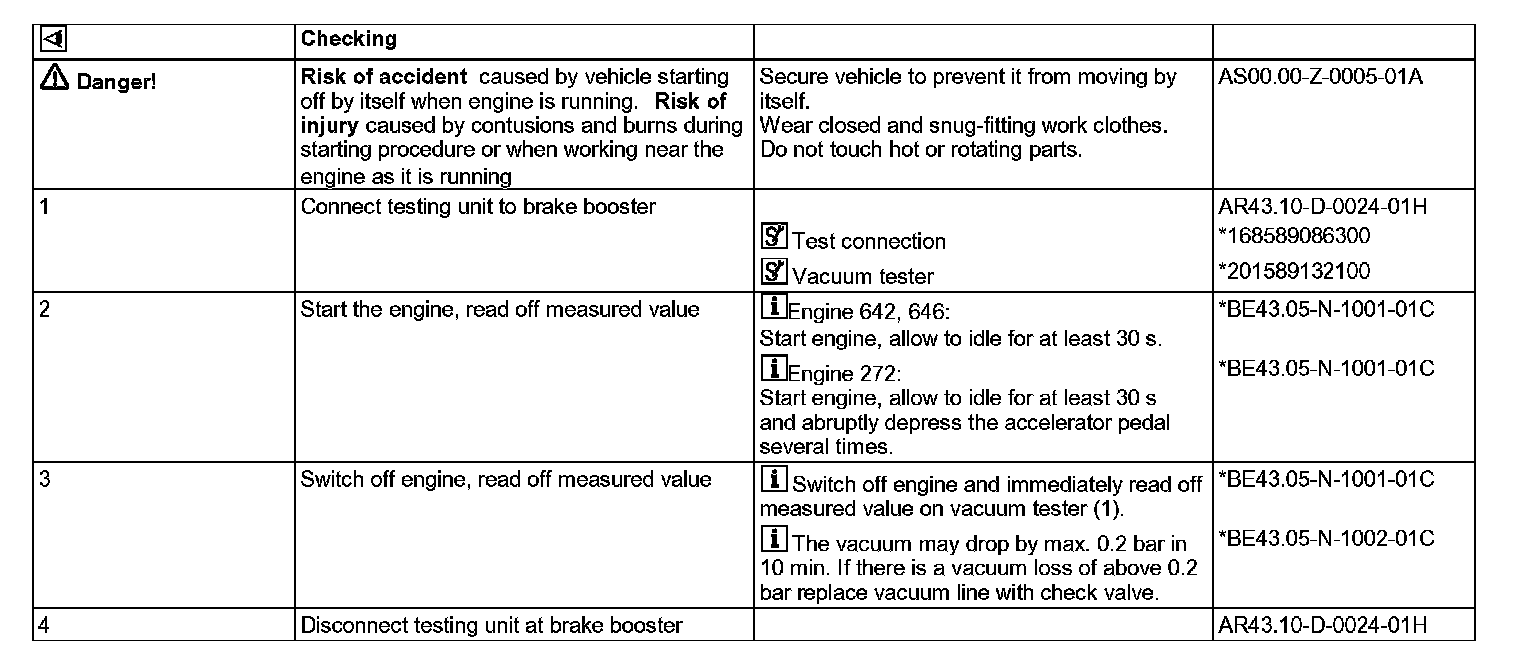

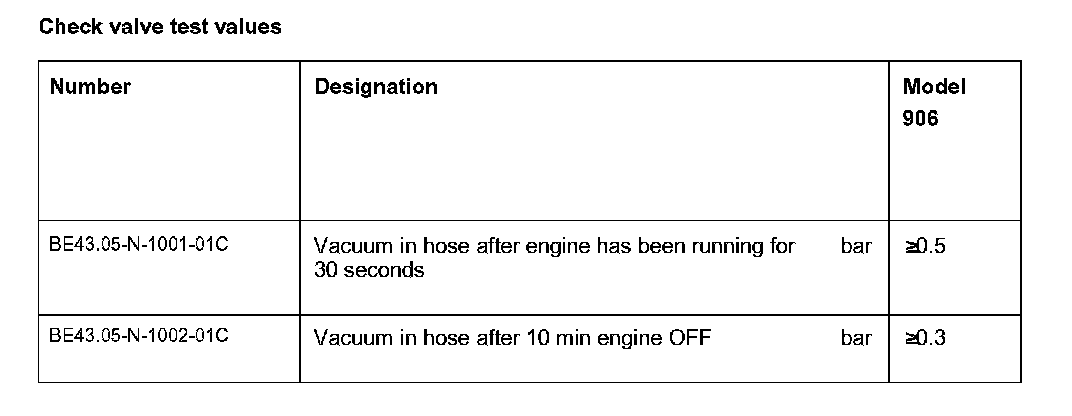

AR43.10-D-0023H Checking Check Valve

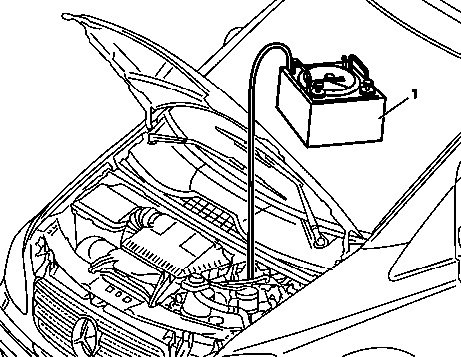

1 Vacuum tester











168 589 08 63 00
Test connection





201 589 13 21 00
Vacuum tester
