Removal and Replacement

SM42.20-D-0016AK Replace Parking Brake Brake Adjuster
MODEL 906.15# /25# #N as of 304272 up to 318869, 906.65# #S as of 105093 up to 126767

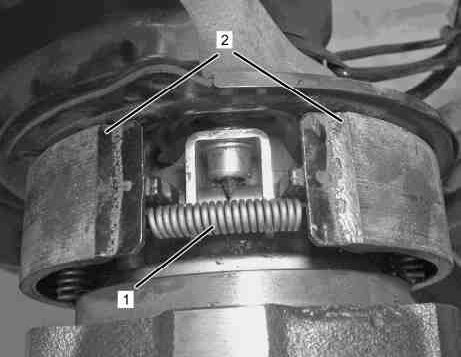

1 Return spring
2 Brake shoes

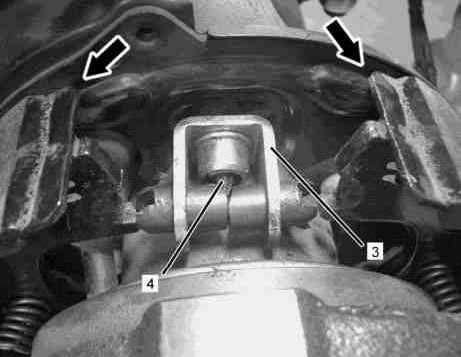

3 Adjuster
4 Adjustment screw

















116 589 01 62 00
Removal and installation tool
