BT42.20-D-0530-01A Sealing Adjuster For Parking Brake Shoe Modified
MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420

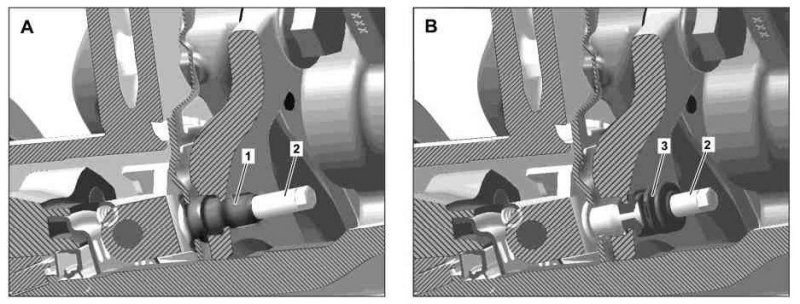

Picture A: New version

1 Sealing
2 Adjuster

Picture B: Old version

2 Adjuster
3 Sealing

As of production period 06/2009 the rear axles (741.413/414/416/420) are equipped with a modified sealing (1) for the parking brake shoe adjuster (2).

In a repair instance, care must be taken to ensure that only the new sealings (1) are installed. Old sealings (3) must be replaced with the new sealings (1). Both sides must always be processed.

Installation: To install the new sealing (1) the adjuster (2) has to be removed.
