Parking Brake Lever: Service and Repair

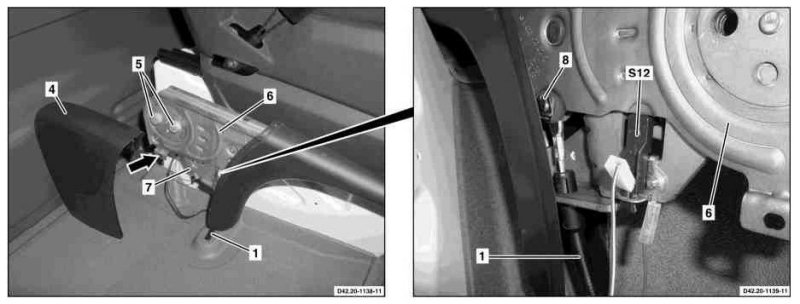

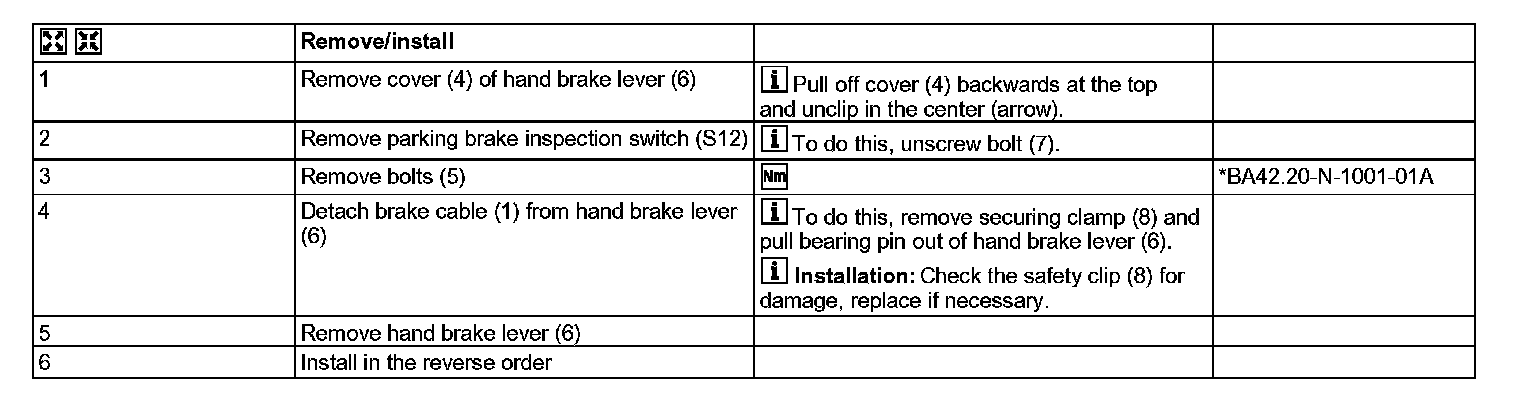

AR42.20-D-0500H Remove/Install Hand Brake Lever






1 Brake cable
4 Trim
5 Bolts
6 Hand brake lever
7 Screw
8 Securing clamp

S12 Parking brake indicator switch
