Removal and Replacement

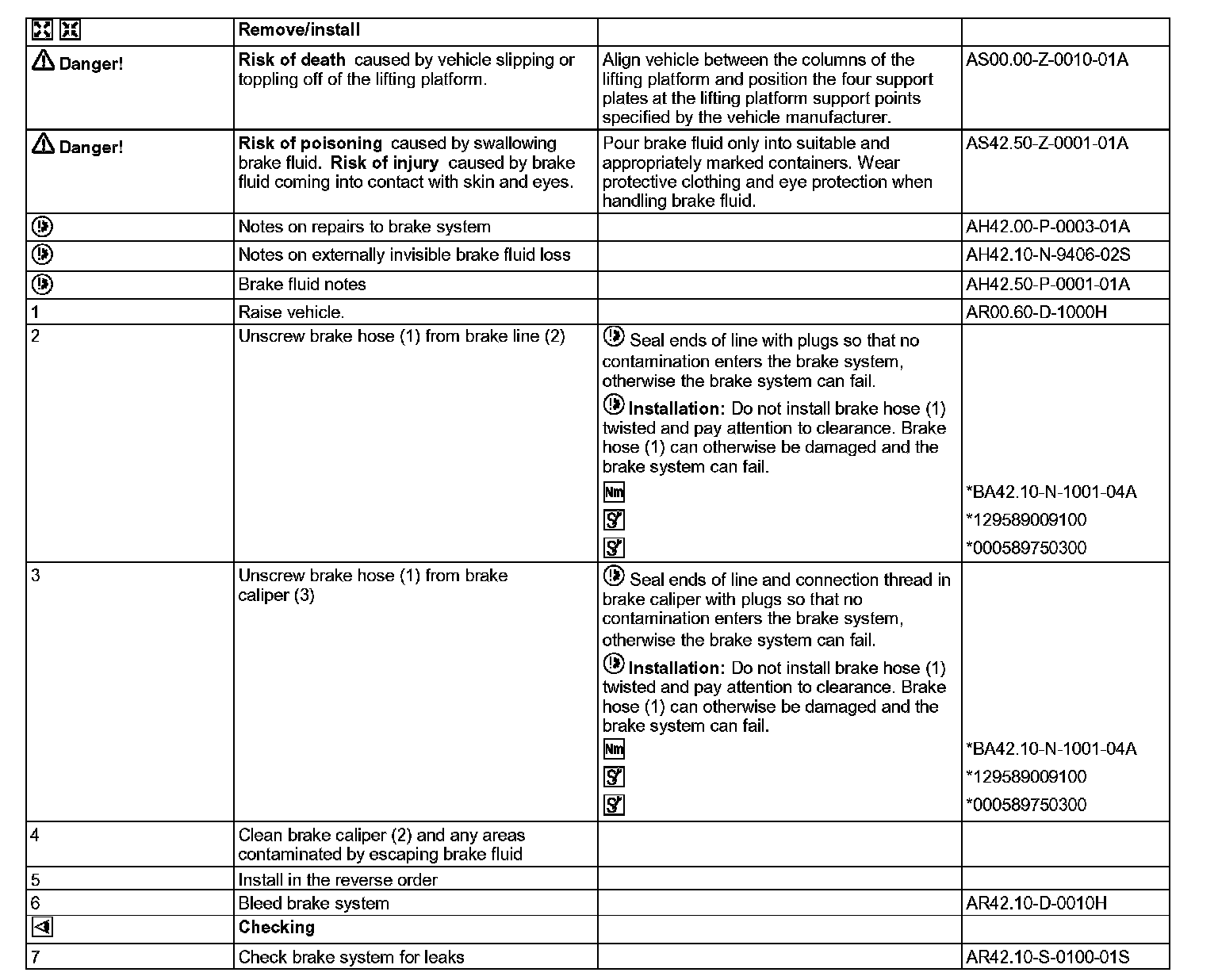

AR42.10-D-0013A Replace Brake Hoses

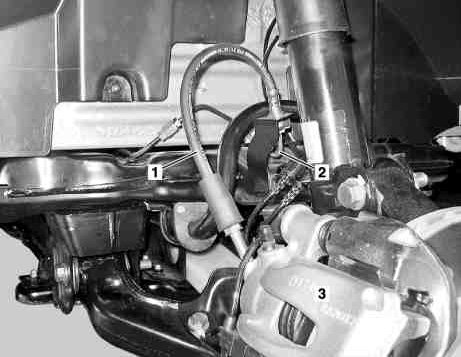

Shown on front brake hose

1 Brake hose
2 Brake line
3 Brake caliper











000 589 75 03 00
Ring wrench socket





129 589 00 91 00
Set of plugs
