Disc Brake System: Testing and Inspection

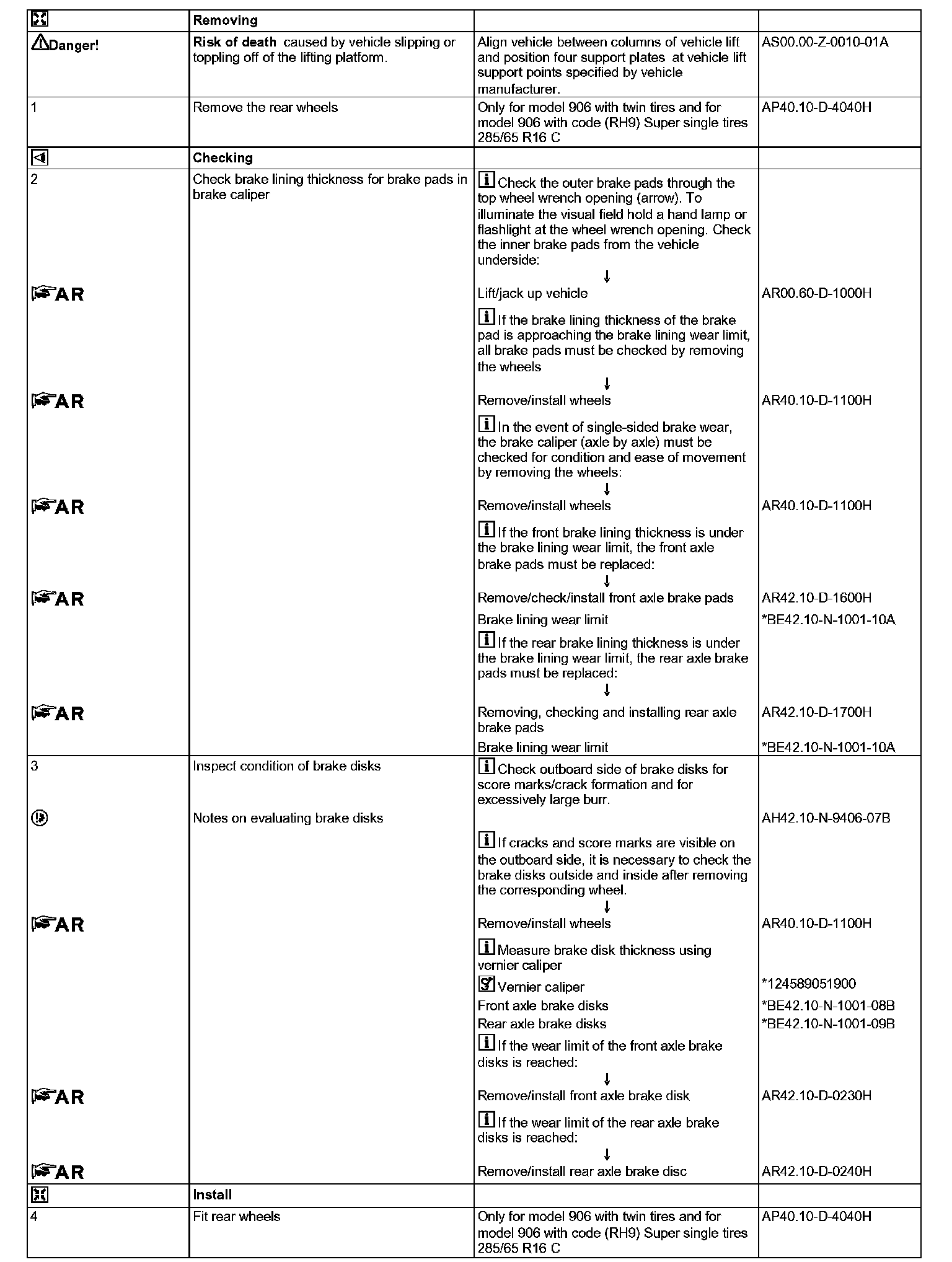

AP42.10-D-4251H Check Lining Thickness of Brake Pads and Condition of Brake Disks
Shown on front wheel brake
Shown on rear wheel brake with twin tires
124 589 05 19 00
Vernier caliper
AP42.10-D-4251H Check Lining Thickness of Brake Pads and Condition of Brake Disks
Shown on front wheel brake
Shown on rear wheel brake with twin tires
124 589 05 19 00
Vernier caliper
