AR42.10-D-0230H Remove/Install Front Axle Brake Disk

AR42.10-D-0230H Remove/Install Front Axle Brake Disk

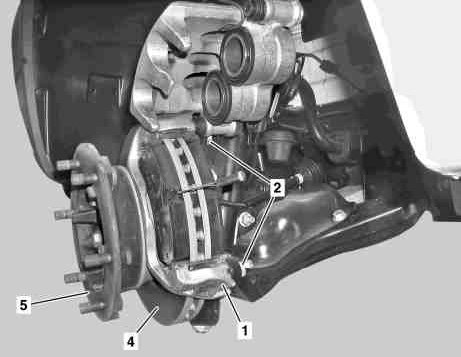

Illustrated on model 906.633

Valid for model 906.11/13/21/23/61/63/71/73

1 Brake carrier
2 Bolts
3 Security bolt
4 Brake disk





Illustrated on model 906.653

Valid for model 906.15/25/65

1 Brake carrier
2 Bolts
4 Brake disk
5 Wheel flange
