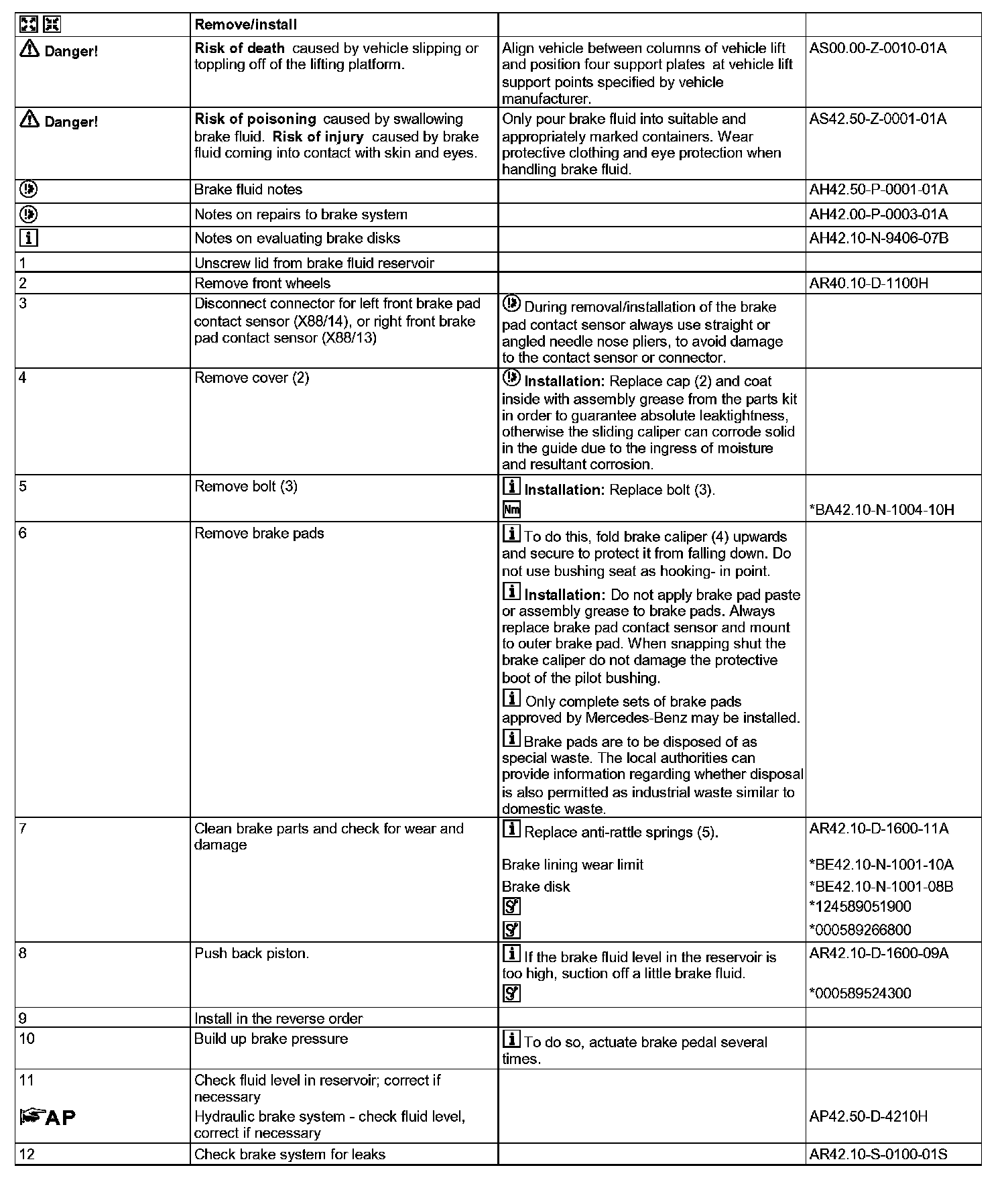

AR42.10-D-1600H Remove/Check/Install Front Axle Brake Pads

AR42.10-D-1600H Remove/Check/Install Front Axle Brake Pads

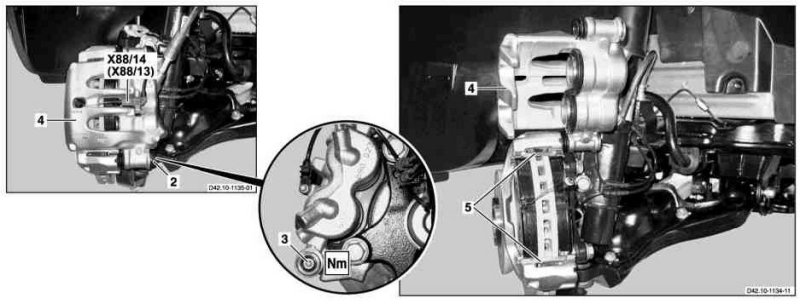

2 Cap
3 Screw
4 Brake caliper
5 Anti-rattle spring

X88/13 Right front brake pad contact sensor connector
X88/14 Left front brake pad contact sensor connector

















000 589 26 68 00
Brake caliper brush





000 589 52 43 00
Pusher tool





124 589 05 19 00
Vernier caliper
