Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Caliper >> Specifications >> BA42.10-N-1000-12A Rear Axle Brake Caliper

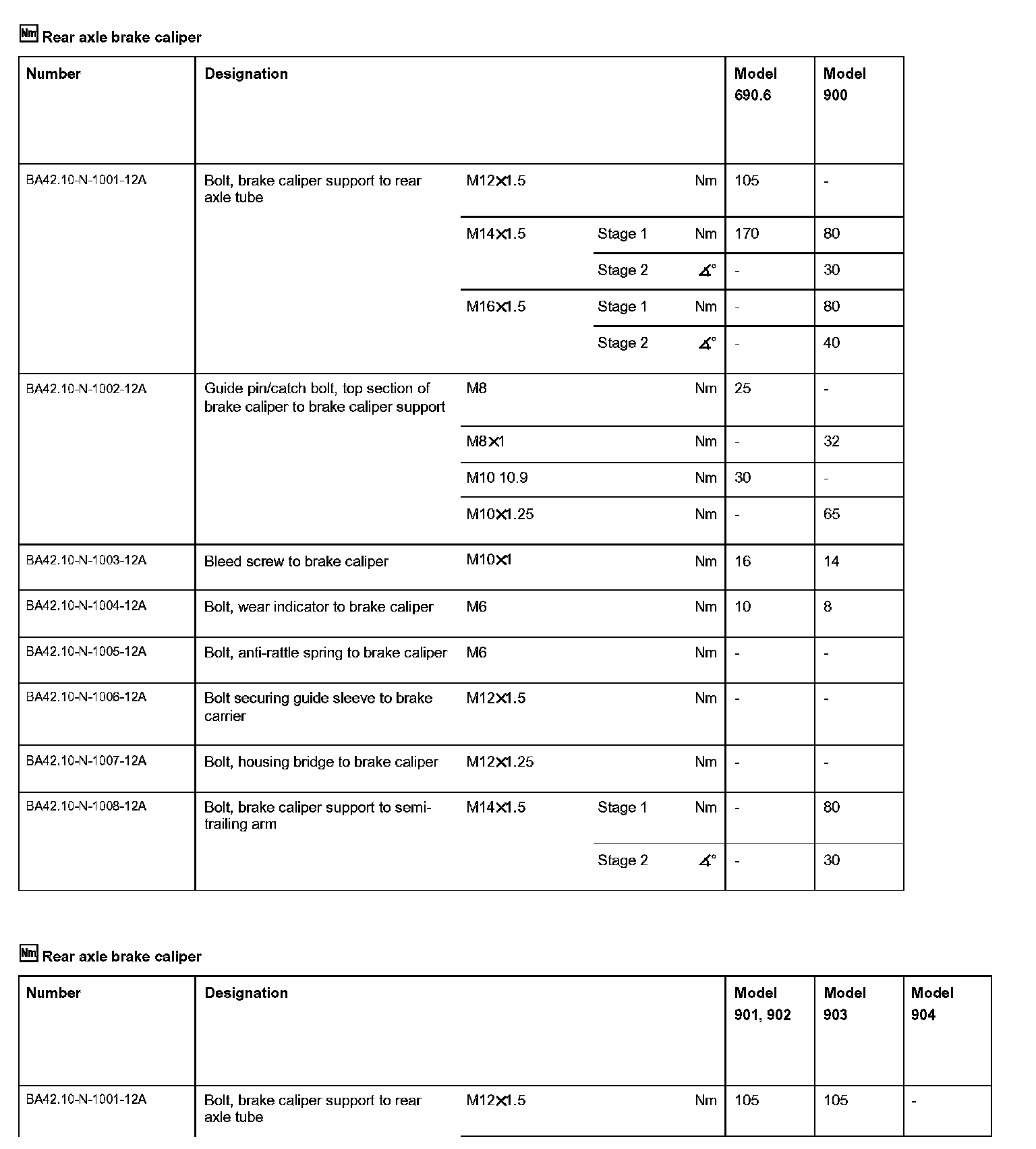

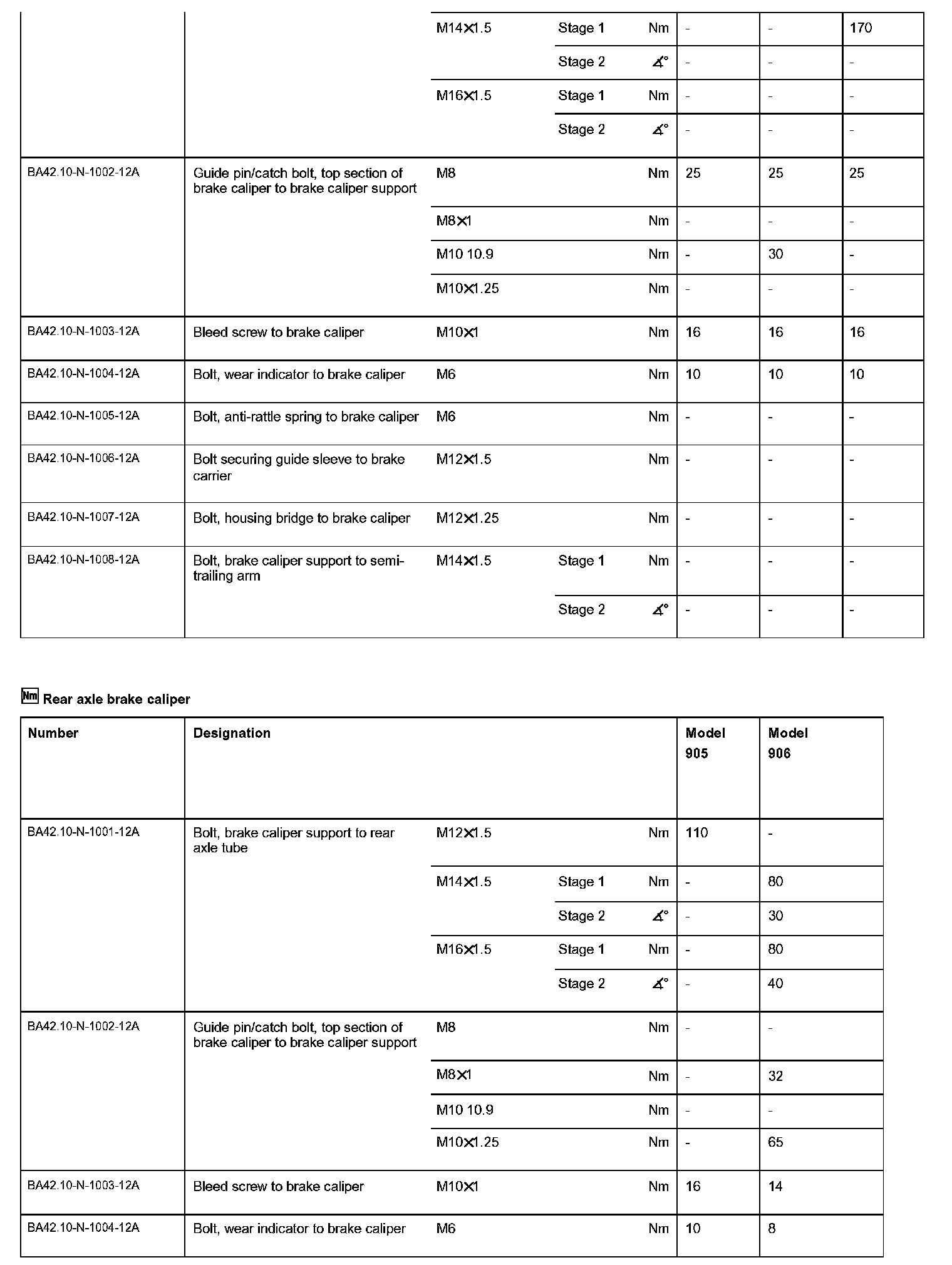

BA42.10-N-1000-12A Rear Axle Brake Caliper



BA42.10-N-1000-12A Rear Axle Brake Caliper
