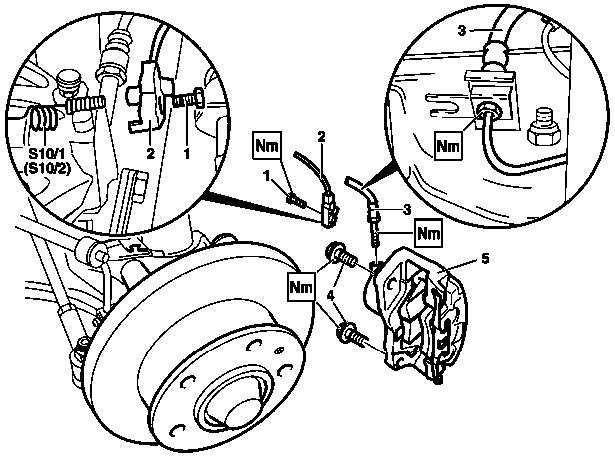

AR42.10-D-0070H Remove/Install Front Axle Brake Caliper

AR42.10-D-0070H Remove/Install Front Axle Brake Caliper






1 Bolt
2 Wear indicator cable
3 Brake hose
4 Bolts
5 Brake caliper

S10/1 Left front brake pad contact sensor
S10/2 Right front brake pad contact sensor

















000 589 75 03 00
Box wrench bit





129 589 00 91 00
Set of stop plugs
