Brake Pedal Assy: Service and Repair

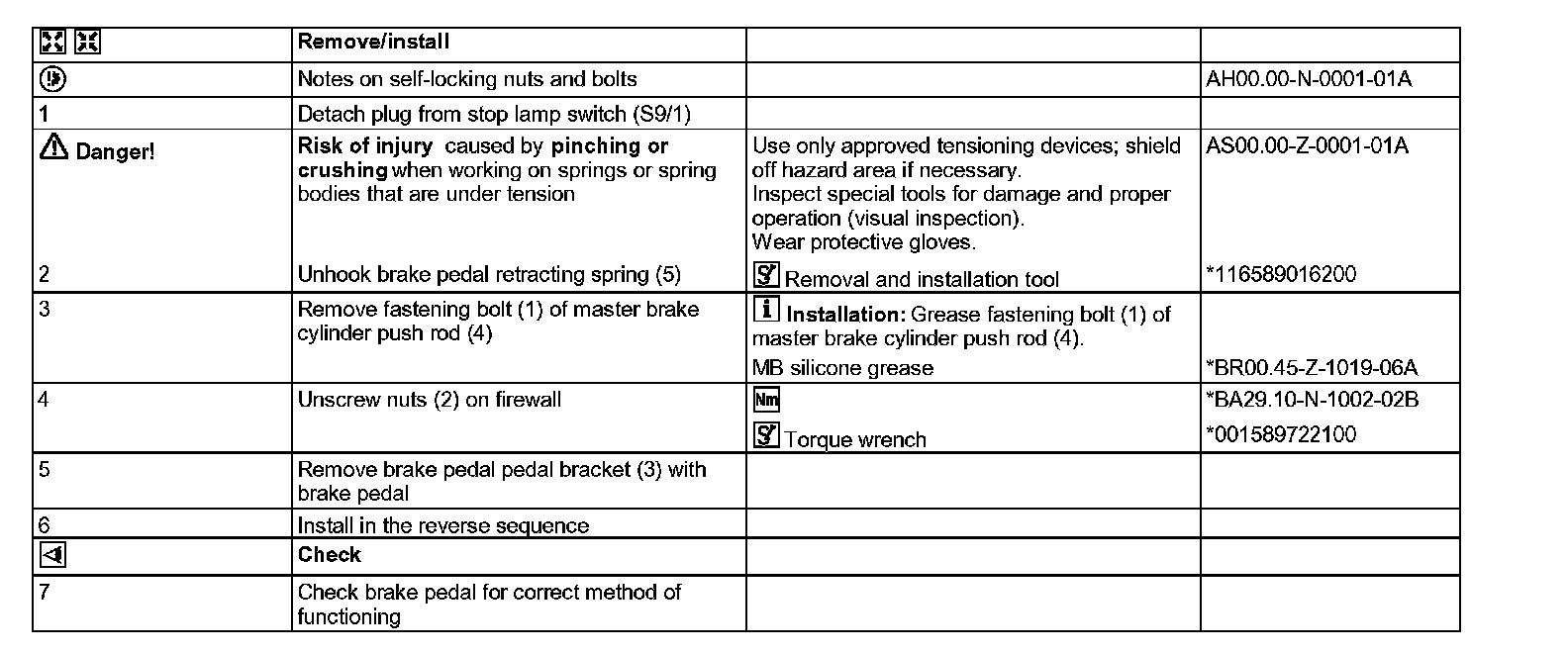

AR29.10-D-4210H Remove/Install Brake Pedal Pedal Bracket






1 Mounting bolts
2 Nuts
3 Brake pedal bracket
4 Brake master brake cylinder push rod
5 Return spring

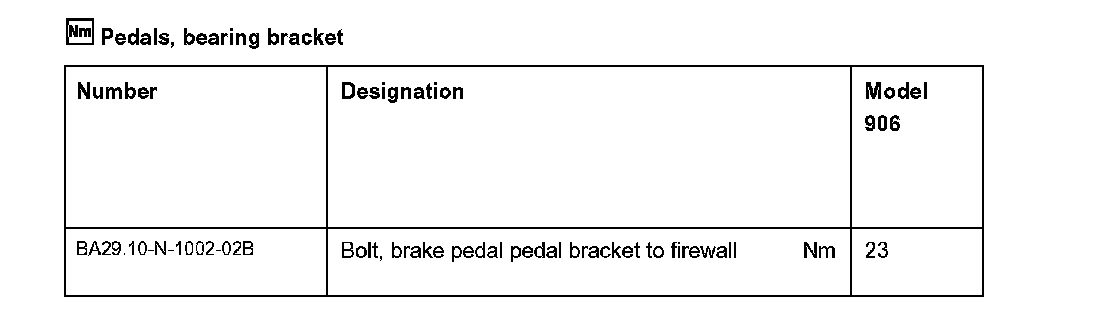

001 589 72 21 00
Torque wrench





116 589 01 62 00
Removal and installation tool
