AR42.10-D-0012A Bleed Brake System With Star Diagnosis

AR42.10-D-0012A Bleed Brake System With Star Diagnosis

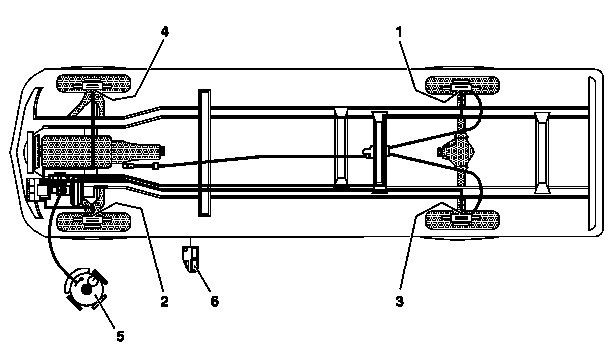

1 First bleeder position right rear
2 Second bleeder position left front
3 Third bleeder position rear left
4 Fourth bleeder position right front
5 Bleeder unit
6 STAR DIAGNOSIS
