Body/Paint - Sliding Door Rail Paint Damage Under End Cap
Paint damage on bead underneath endcap of load compartment sliding door rail
Topic number LI98.00-N-048765
Version 1
Design group 98.00 General
Date 02-04-2010
Validity Model 906.6 and 906.7
Reason for change
Reason for block
Complaint:
Paint damage underneath end cap of load compartment sliding door rail.
Cause:
When the load compartment sliding door is actuated or due to vibrations while driving, the end cap of the load compartment sliding door rail can collide with the raised panel line of the side wall.
Remedy:
Touch up paint damage with a touch-up paint pen.
Partially remove load compartment sliding door rail near the end cap.

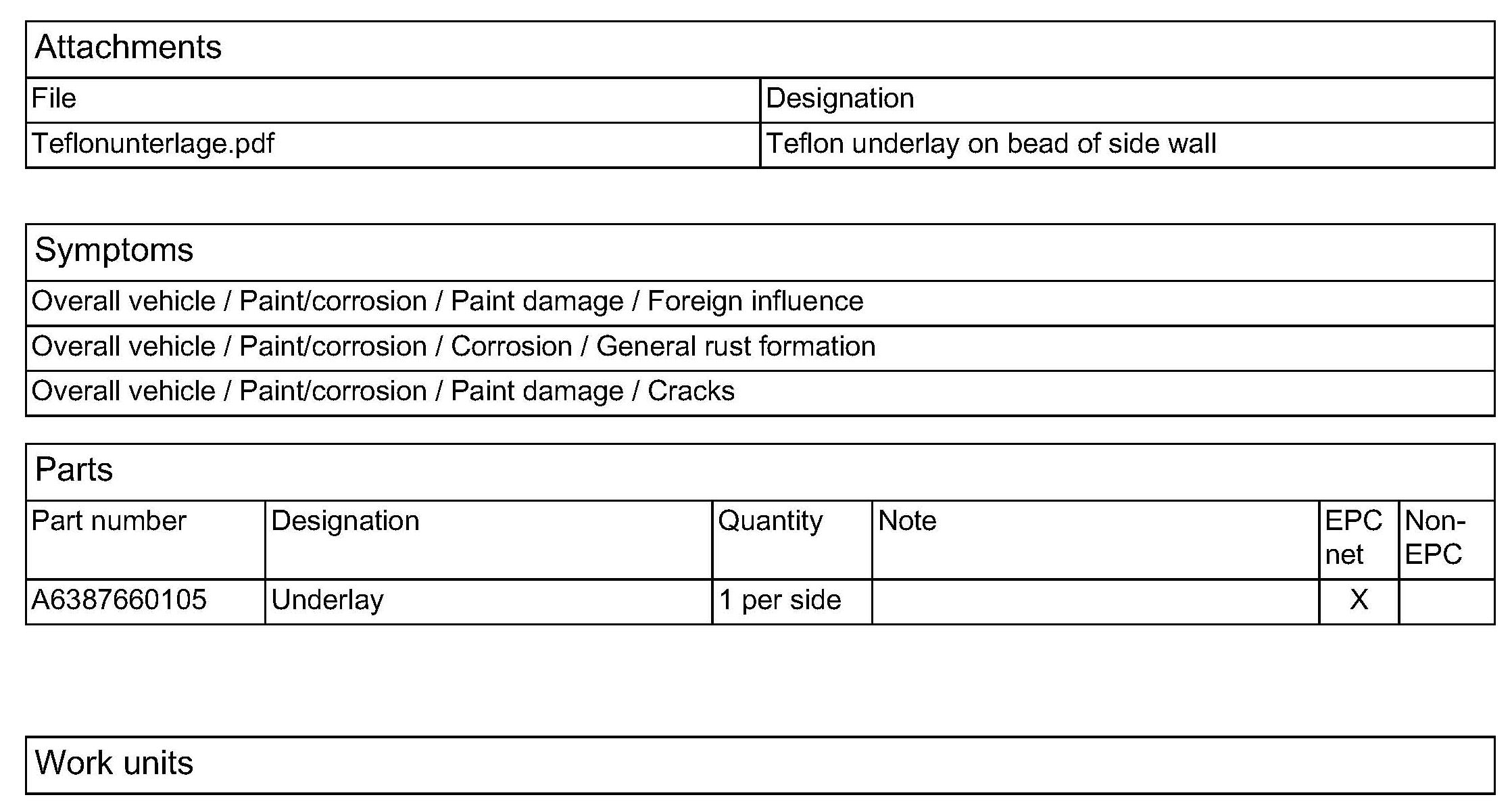

Attach Teflon underlay.
