Spare Tire Carrier: Service and Repair

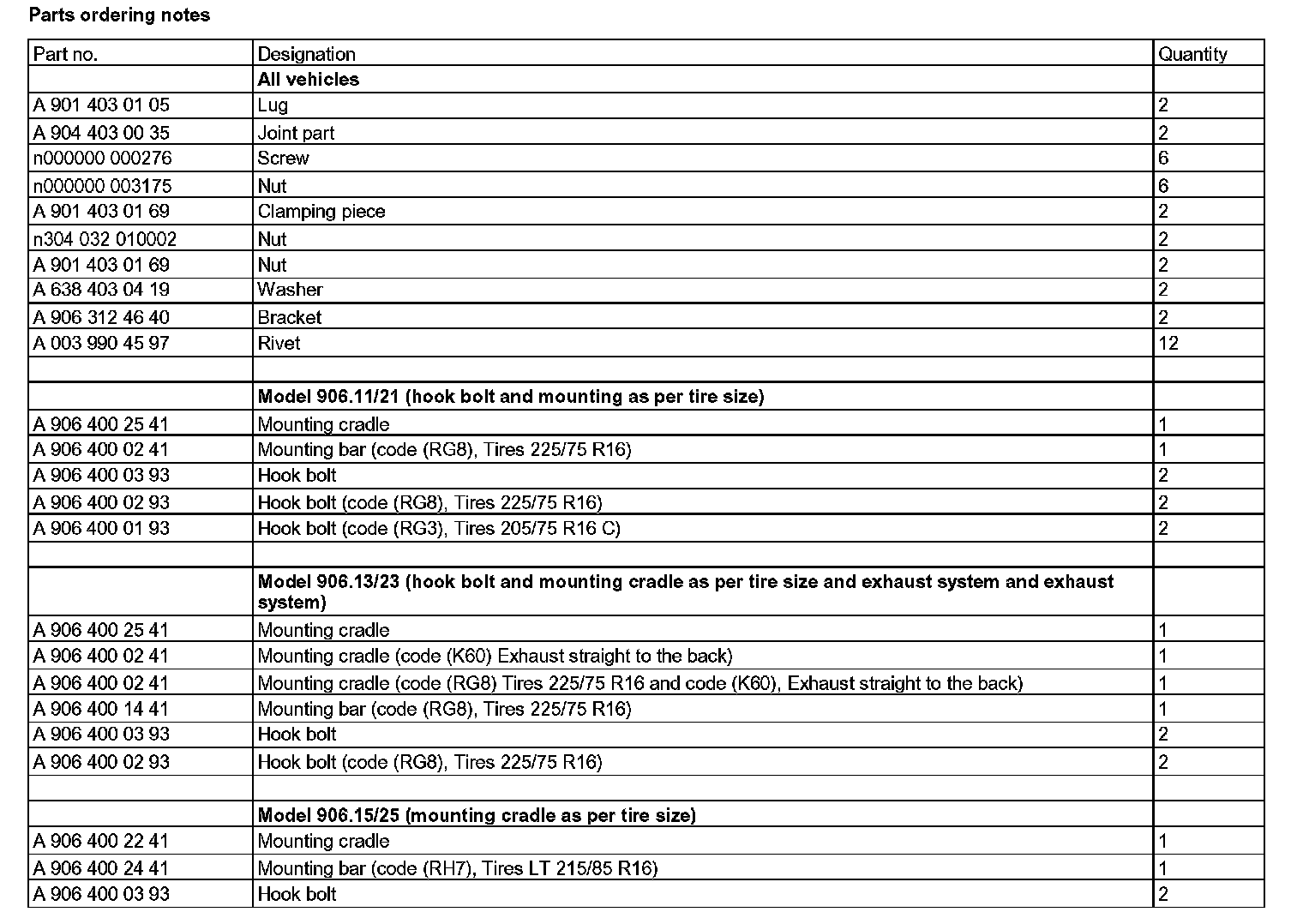

AN40.10-D-0004HA Retrofit Spare Tire Holder






Model 906.111/131/ 211/231

1 Bracket
a 15 mm
b 521 mm
e 28 mm
h 11 mm
i 14 mm
k 52 mm





Model 906.113/133/ 213/233

1 Bracket
a 15 mm
c 307 mm
e 28 mm
h 11 mm
i 14 mm
k 52 mm

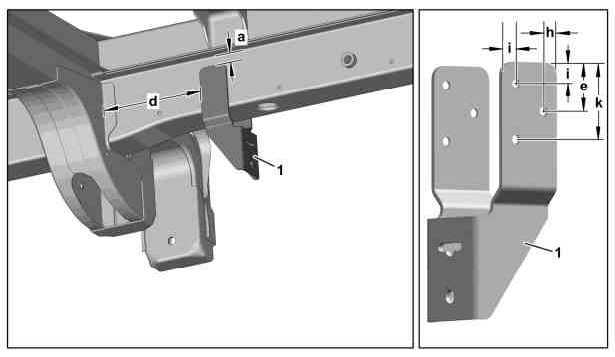

Model 906.135/235

1 Bracket
a 15 mm
d 156 mm
e 28 mm
h 11 mm
i 14 mm
k 52 mm





Model 906.153/253

1 Bracket
e 28 mm
f 229 mm
h 11 mm
i 14 mm
k 52 mm





Model 906.155/255

1 Bracket
e 28 mm
g 169 mm
h 11 mm
i 14 mm
k 52 mm





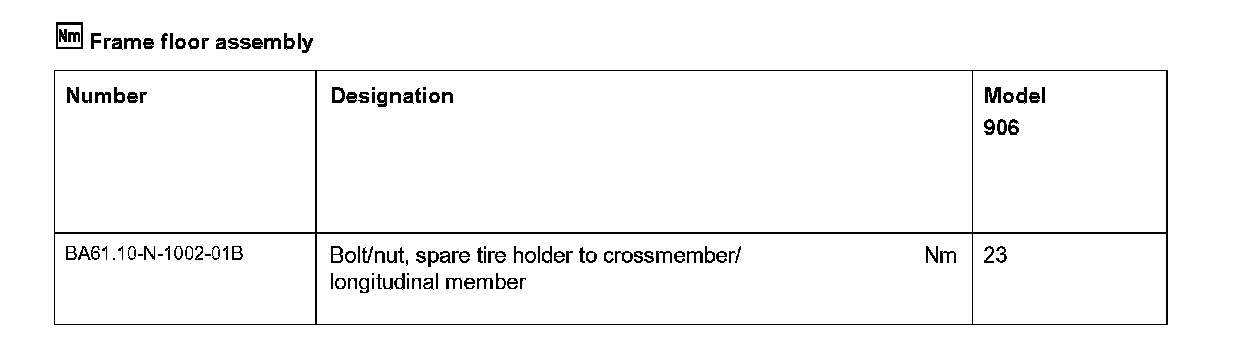

Illustrated on model 906.133

1 Bracket
2 Mounting cradle
3 Joint parts
4 Pads
5 Catch hook
6 Clamps
7 Nuts
8 Wing nuts
9 End crossmember
