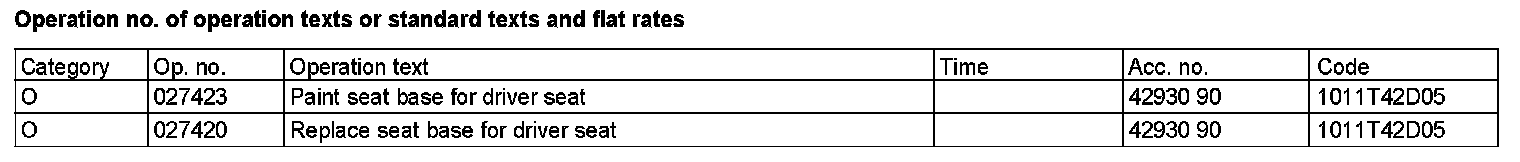

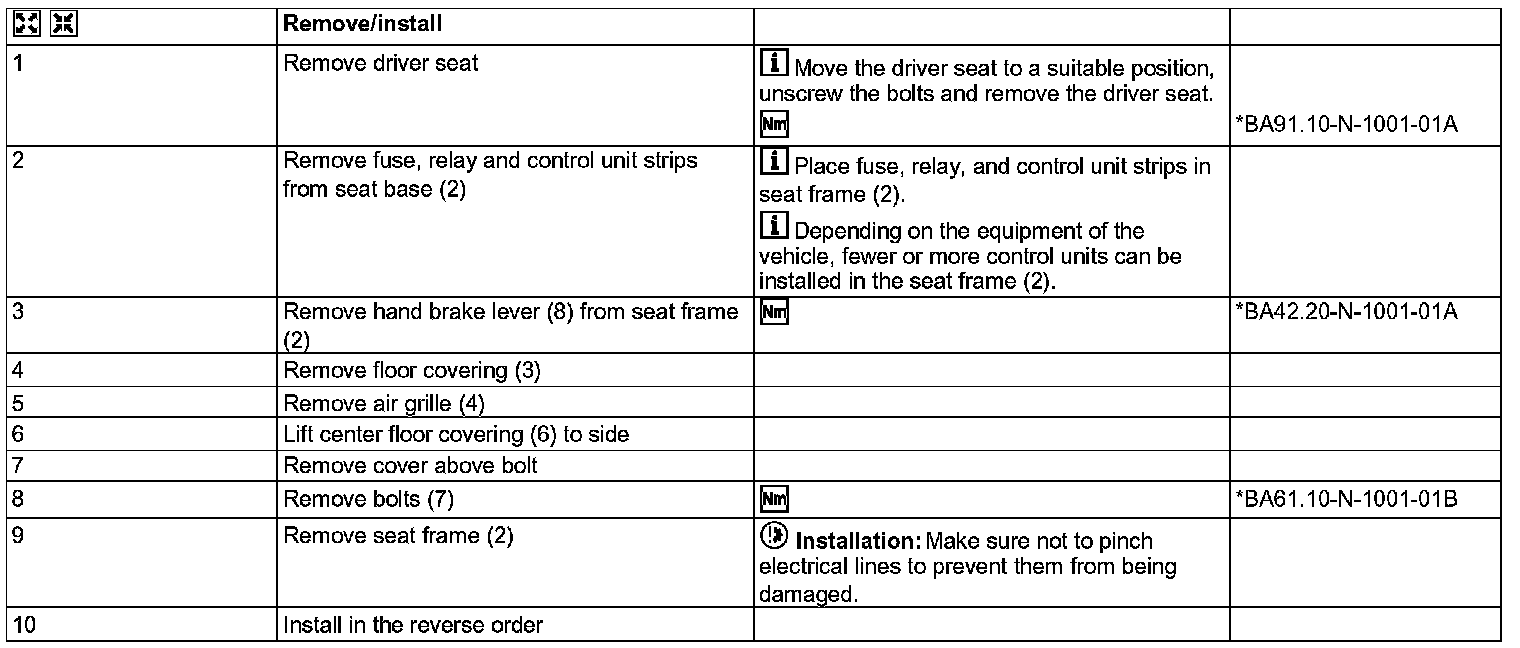

SM91.10-D-0015A Replace Seat Base

SM91.10-D-0015A Replace Seat Base

- with CODE () Driver seat rotating frame

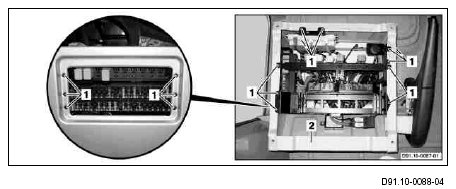

1 Bolts

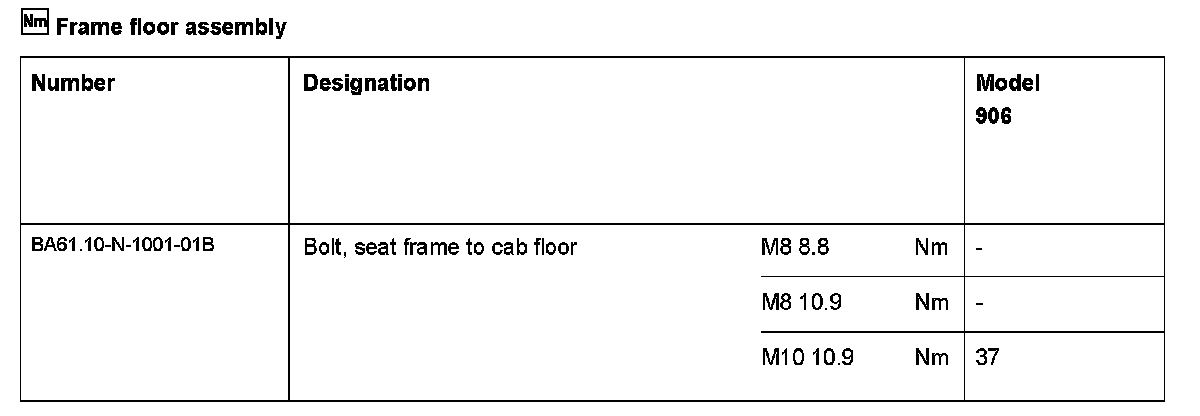

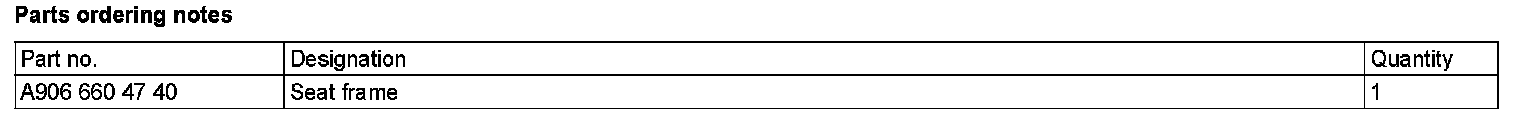

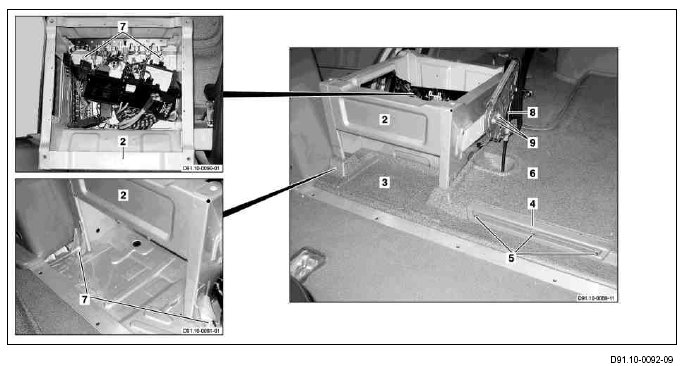

2 Seat frame







2 Seat frame
3 Floor Covering
4 Air grille
5 Bolts
6 Center floor covering
7 Bolts

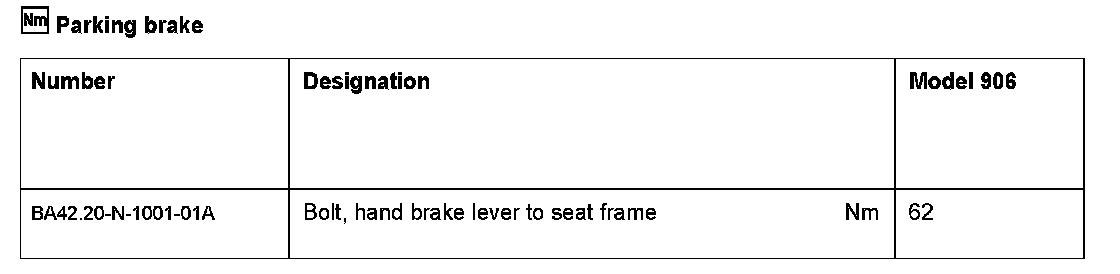

8 Hand brake lever
9 Bolts
