AR91.10-D-3310B Remove/Install Seat Cushion

AR91.10-D-3310B Remove/Install Seat Cushion

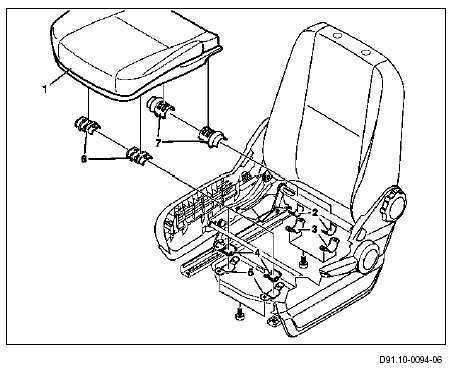

Standard version of driver seat, individual front passenger seat







1 Seat cushion
2 Lower split bearing shell (rear)
3 Retaining clip
4 Lower split bearing shell (front)
5 Retaining tab
6 Upper split bearing shell (front)
7 Upper split bearing shell (rear)
