AR91.10-D-3325B Remove/Install Backrest

AR91.10-D-3325B Remove/Install Backrest


Standard version driver seat, front passenger individual seat







1 Backrest

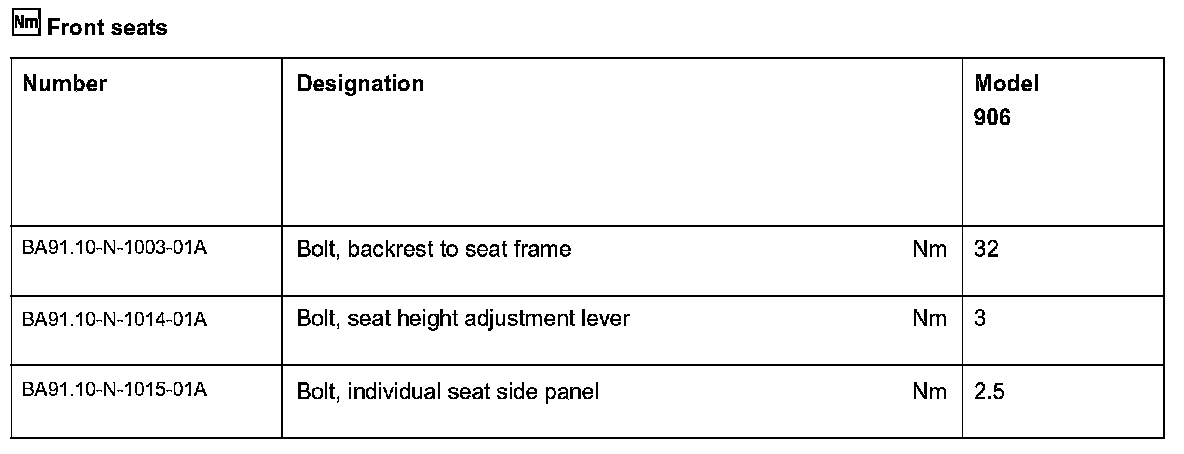

2 Bolt
3 Backrest adjustment hand wheel
4 Seat height adjustment lever
5 Bolt
6 Side paneling

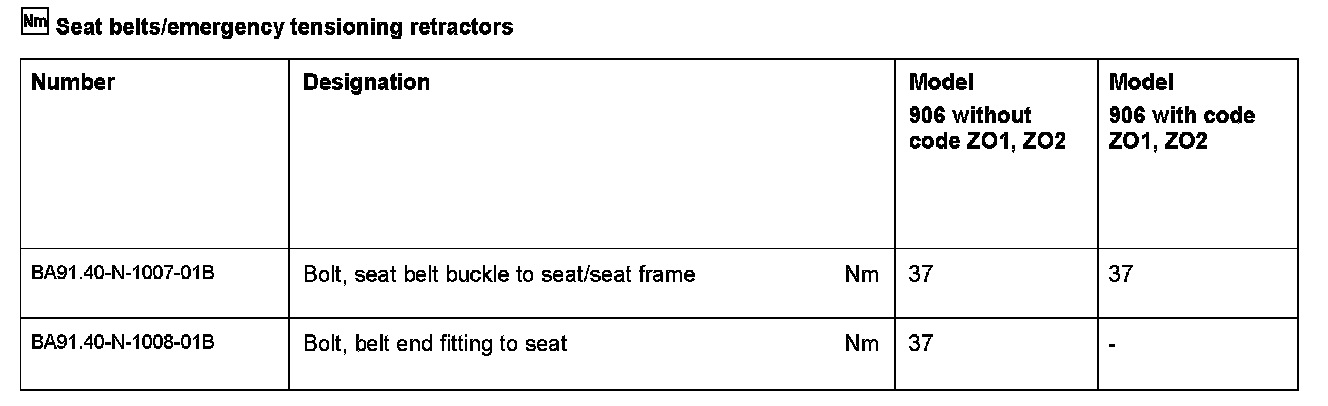

7 Seat belt buckle
8 Bolt
