GF91.30-D-3210H Heated Cushion, Component Description

GF91.30-D-3210H Heated Cushion, Component Description

- with CODE (H15) Heater for front passenger seat
- with CODE (H16) Heater for driver seat

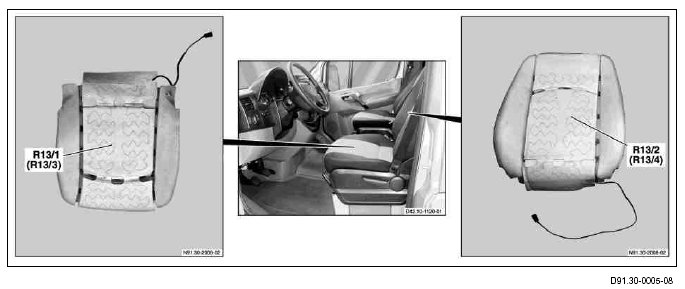

R13/1 Driver seat heated cushion
R13/2 Driver seat backrest heated cushion
R13/3 Front passenger seat heated cushion
R13/4 Front passenger seat backrest heated cushion

Location

The driver seat heated cushion, front passenger seat heated cushion, driver seat backrest heated cushion and front passenger seat backrest heated cushion are integrated into the respective seat bolster.

Task

The driver seat heated cushion, front passenger seat heated driver seat backrest heated cushion and front passenger seat backrest heated cushion are responsible for heating the respective seat bolster.
