GF77.20-D-4350H Tilting/Sliding Roof (SR), Component Description

GF77.20-D-4350H Tilting/Sliding Roof (SR), Component Description

- with CODE (D27) Power glass tilting/sliding roof

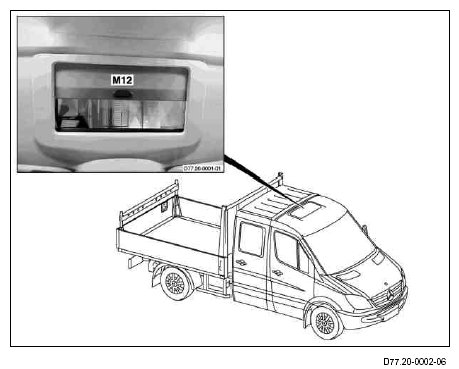

Shown on model 906.2

M12 Front tilting/sliding roof

Location

The front tilting/sliding roof is located in the roof of the driver compartment.

Task

The front tilting/sliding roof serves for supplying fresh air and replacing the air in the interior compartment.

Design

The front tilting/sliding roof consists of the front tilting/sliding roof motor (M12m1) with front tilting/sliding roof hall sensor (M12b1) and front tilting/sliding roof Hall sensor (M12b2), the guide rails, the cables, the glass roof and the roller sun blind.
