Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Door Module >> Diagrams

Door Module: Diagrams

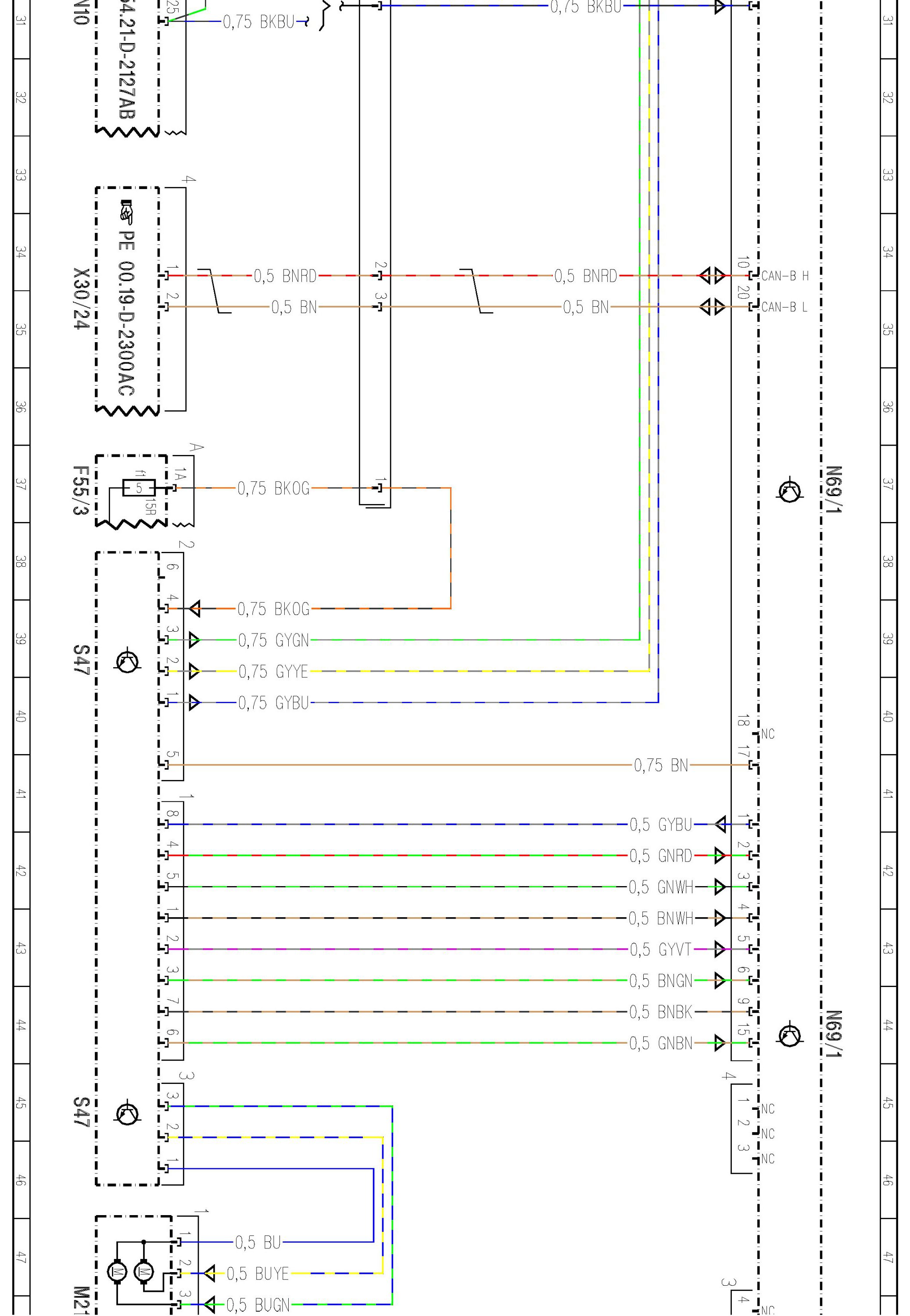

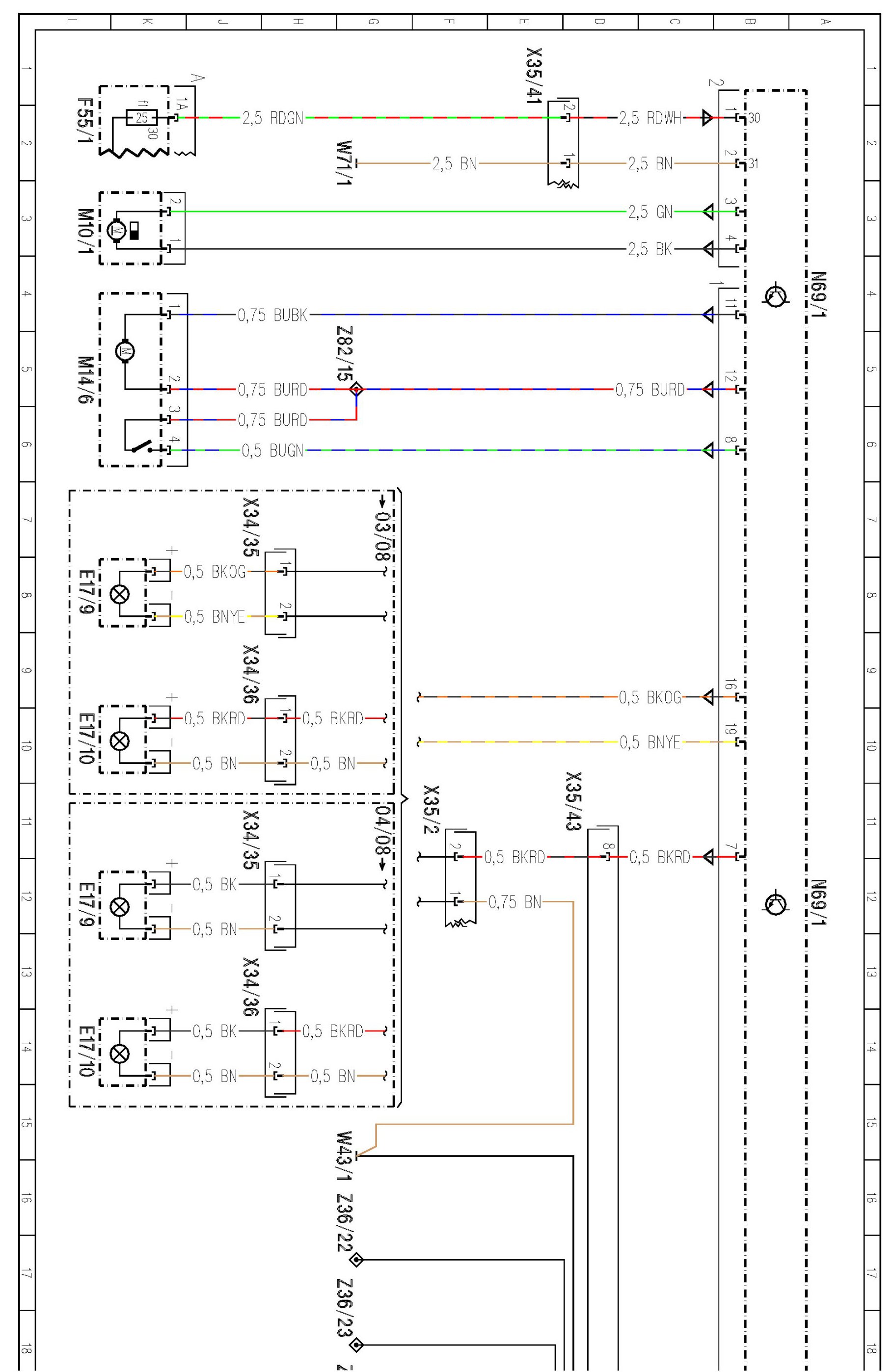

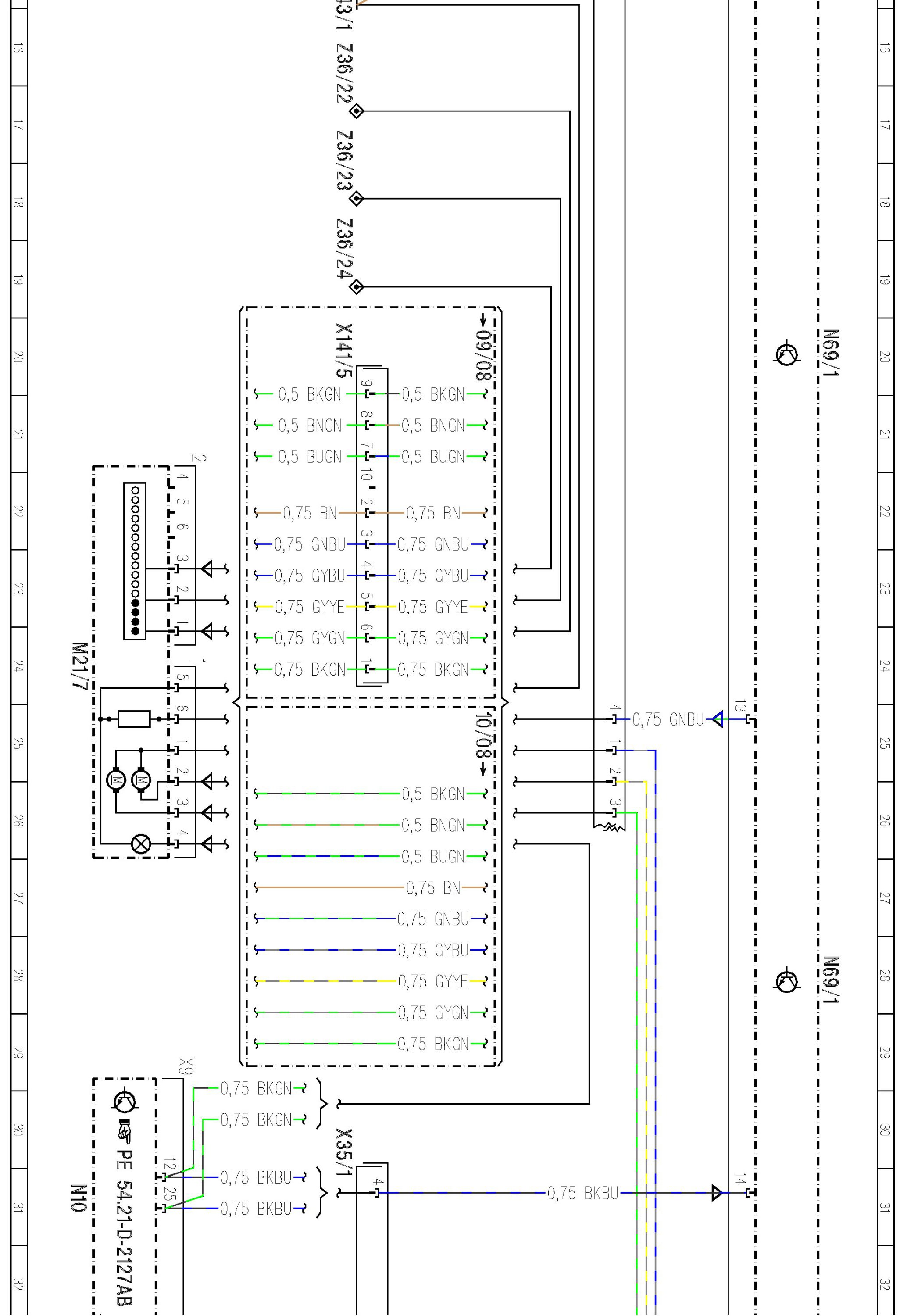

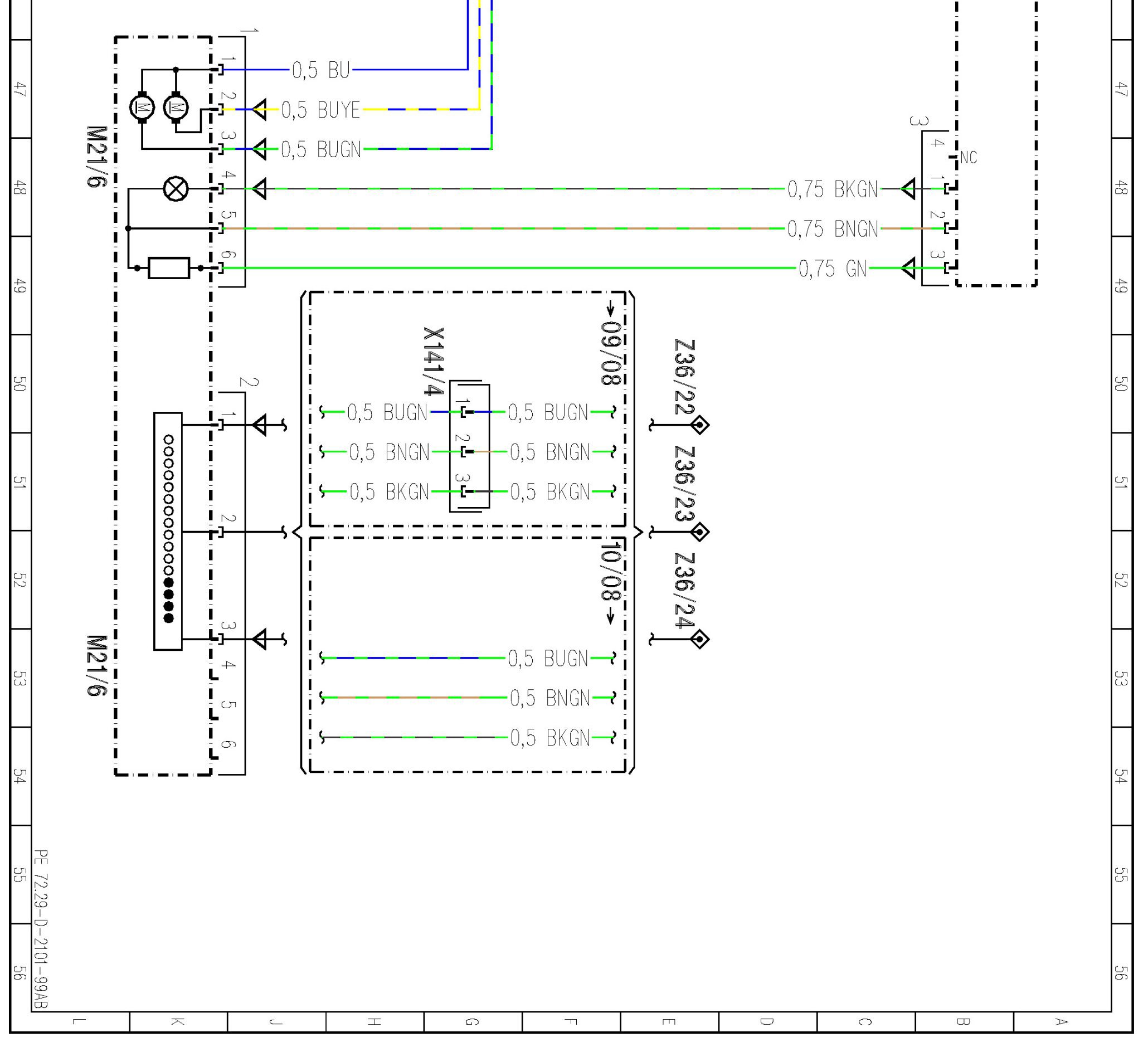

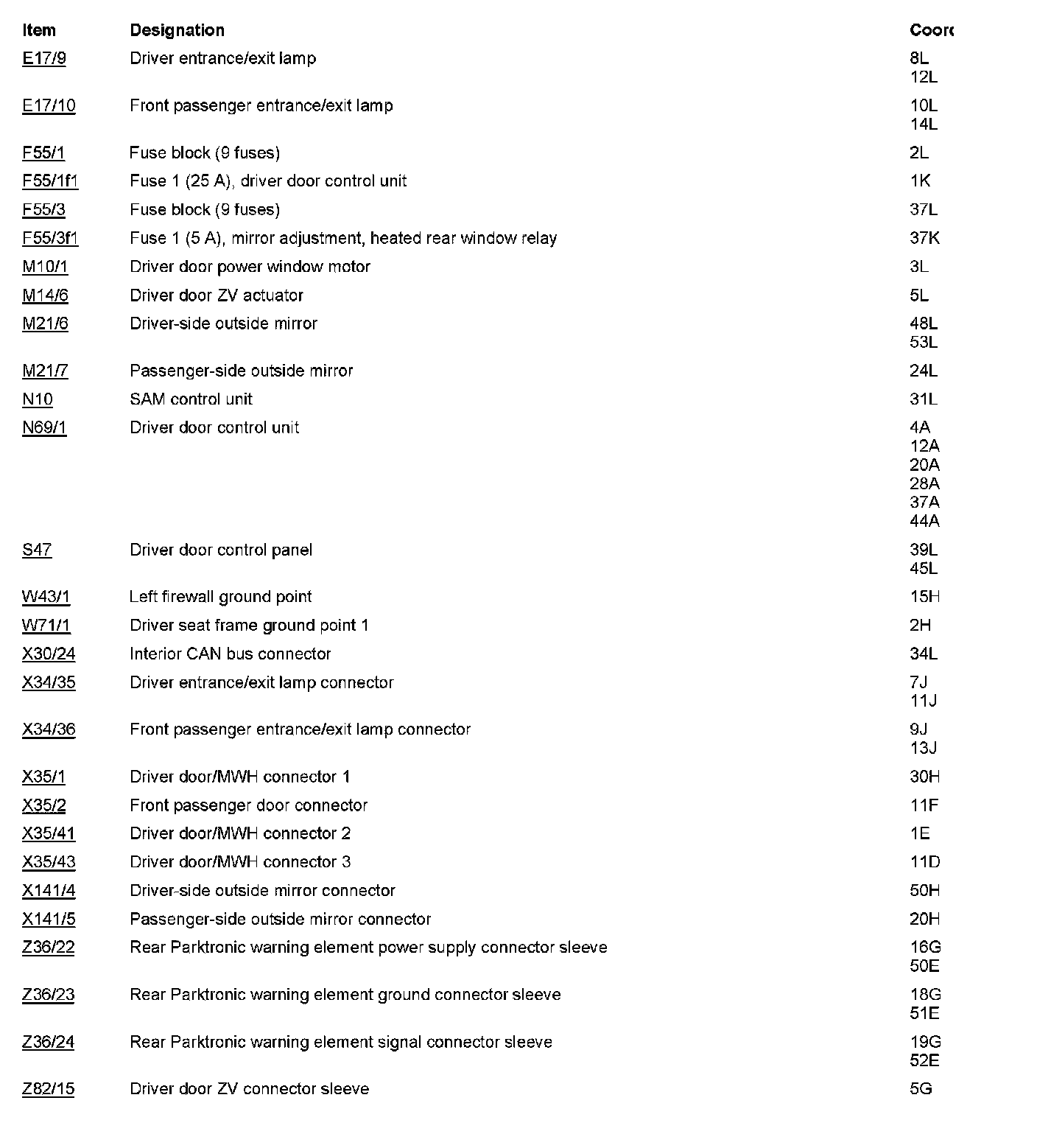

PE72.29-D-2101AB Left Front Door Control Unit (DCU)

906 72 Doors
Model 906.1 /2 /6 /7 as of 09/01/06
