Home >> Mercedes Benz Truck >> 2010 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Service and Repair >> Removal and Replacement >> AR68.40-D-0001H Remove/Install Inside Rearview Mirror

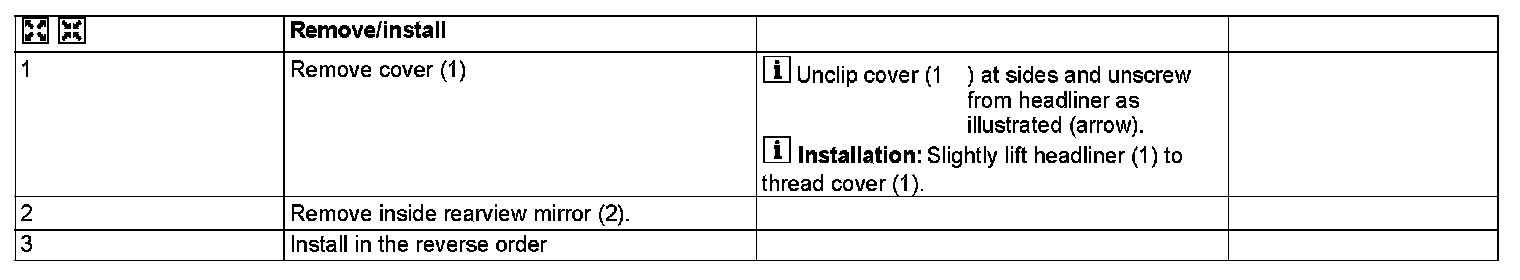

AR68.40-D-0001H Remove/Install Inside Rearview Mirror




AR68.40-D-0001H Remove/Install Inside Rearview Mirror

- with CODE (JA5) Light/rain sensor

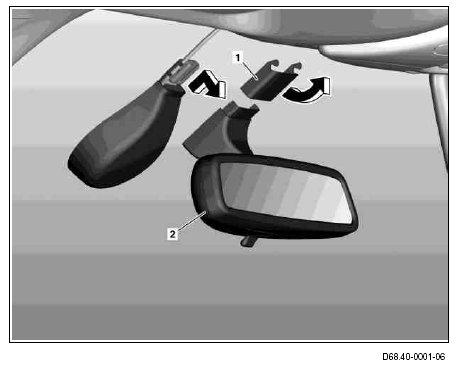

1 Cover
2 Interior rearview mirror
