Cross-Member: Service and Repair

AH26.10-N-0002-01A Notes on Installing Transmission Crossmember
Transmission 711.651 in model 906.1/2/6/7
Transmission 711.660 in model 906.1/2/6/7
Transmission 722.683 in model 906.1/2/6/7
Transmission 722.684 in model 906.1/2/6/7
Transmission 722.685 in model 906.1/2/6/7

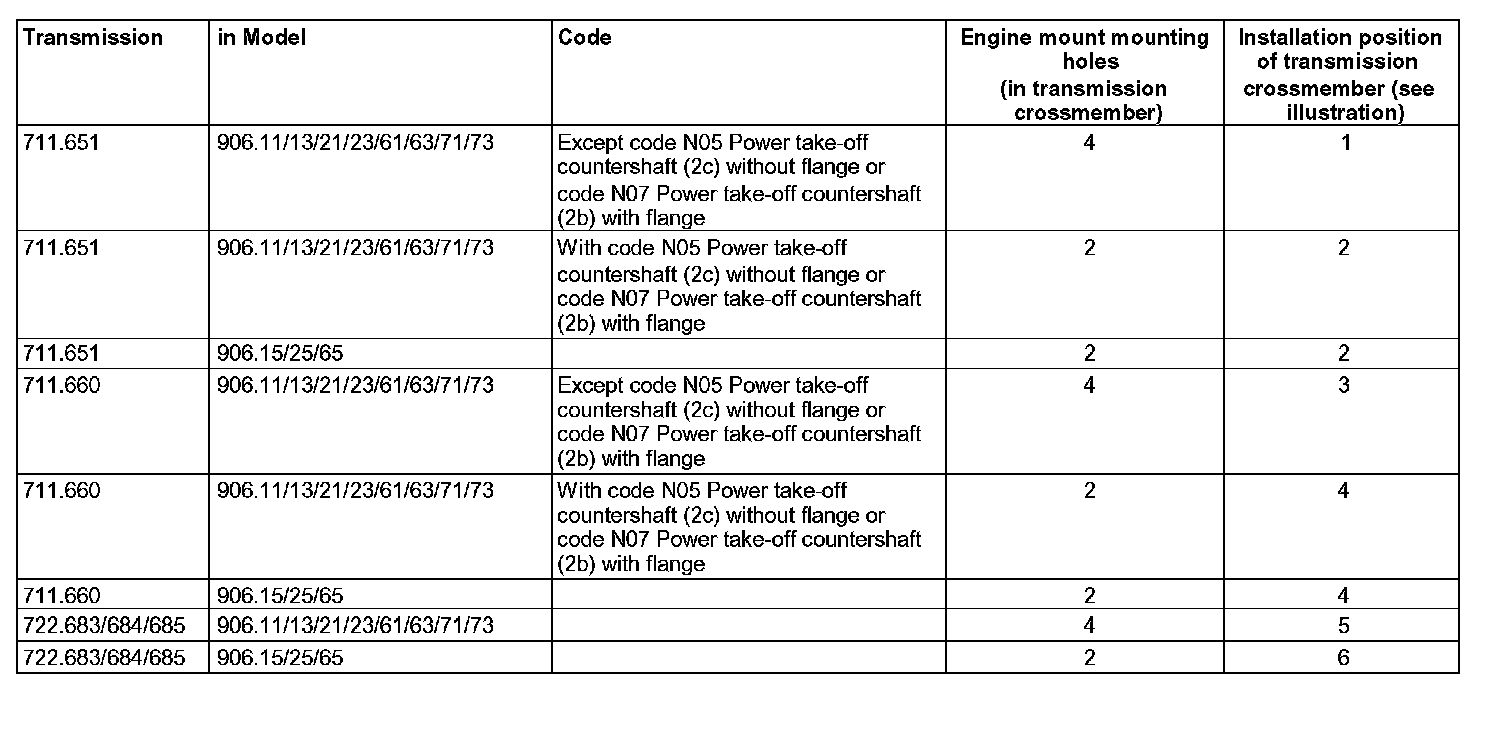

Different transmission crossmembers are fitted depending on the vehicle equipment:
^ with 4 mounting holes for rear engine mount
^ with 2 mounting holes for rear engine mount

Depending on the vehicle equipment, the transmission crossmembers are attached to the frame-type integral support at different positions.

For vehicles with code ZG1 Engageable all-wheel drive, code ZG2 Permanent all-wheel drive, code ZG3 Gear reduction for all-wheel drive or code ZG4 Permanent all-wheel drive with gear reduction the installation position of the transmission crossmember is clearly recognizable, and therefore not mentioned here.

The mounting holes on the transmission crossmembers for attaching the rear engine mount are not in perfect alignment with the mounting holes for the frame-type integral support.

The installation position of the transmission crossmembers varies depending on the transmission version.

Make sure that the installation position of the transmission crossmember is correct

The illustrations show the top view of the transmission crossmembers.

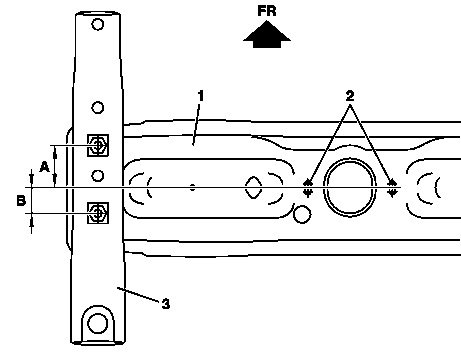

Illustration 1

Transmission 711.651 in model 906.11/13/21/23/61/63/71/73 except code N05 Power take-off countershaft (2c) without flange or code N07 Power take-off countershaft (2b) with flange

Dimension (A) must be smaller than dimension (B).

Installation position

1 Transmission crossmember
2 Mounting holes (for rear engine mount)
3 Frame-type integral support
A Dimension (center of engine mount mounting holes to front frame-type integral support mounting holes)
B Dimension (center of engine mount mounting holes to rear frame-type integral support mounting holes)
FR Direction of travel





Illustration 2

Transmission 711.651 in model 906.11/13/21/23/61/63/71/73 with code N05 Power take-off countershaft (2c) without flange or code N07 Power take-off countershaft (2b) with flange Transmission 711.651 in model 906.15/25/65

Dimension (A) must be smaller than dimension (B).

Installation position

1 Transmission crossmember
2 Mounting holes (for rear engine mount)
3 Frame-type integral support
A Dimension (center of engine mount mounting holes to front frame-type integral support mounting holes)
B Dimension (center of engine mount mounting holes to rear frame-type integral support mounting holes)
FR Direction of travel





Illustration 3

Transmission 711.660 in model 906.11/13/21/23/61/63/71/73 except code N05 Power take-off countershaft (2c) without flange or code N07 Power take-off countershaft (2b) with flange

Dimension (A) must be smaller than dimension (B).

Installation position

1 Transmission crossmember
2 Mounting holes (for rear engine mount)
3 Frame-type integral support
A Dimension (center of engine mount mounting holes to front frame-type integral support mounting holes)
B Dimension (center of engine mount mounting holes to rear frame-type integral support mounting holes)
FR Direction of travel





Illustration 4

Transmission 711.660 in model 906.11/13/21/23/61/63/71/73 with code N05 Power take-off countershaft (2c) without flange or code N07 Power take-off countershaft (2b) with flange Transmission 711.660 in model 906.15/25/65

Dimension (A) must be smaller than dimension (B).

Installation position

1 Transmission crossmember
2 Mounting holes (for rear engine mount)
3 Frame-type integral support
A Dimension (center of engine mount mounting holes to front frame-type integral support mounting holes)
B Dimension (center of engine mount mounting holes to rear frame-type integral support mounting holes)
FR Direction of travel





Illustration 5

Transmission 722.683 in model 906.11/13/21/23/61/63/71/73/,
Transmission 722.684 in model 906.11/13/21/23/61/63/71/73/,
Transmission 722.685 in model 906.11/13/21/23/61/63/71/73/,

Dimension (B) must be smaller than dimension (A).

On vehicles with automatic transmission, the transmission crossmember is installed rotated by 180°.

Installation position

1 Transmission crossmember
2 Mounting holes (for rear engine mount)
3 Frame-type integral support
A Dimension (center of engine mount mounting holes to front frame-type integral support mounting holes)
B Dimension (center of engine mount mounting holes to rear frame-type integral support mounting holes)
FR Direction of travel





Illustration 6

Transmission 722.683 in model 906.15/25/65
Transmission 722.684 in model 906.15/25/65
Transmission 722.685 in model 906.15/25/65

Dimension (B) must be smaller than dimension (A).

On vehicles with automatic transmission, the transmission crossmember is installed rotated by 180°.

Installation position

1 Transmission crossmember
2 Mounting holes (for rear engine mount)
3 Frame-type integral support
A Dimension (center of engine mount mounting holes to front frame-type integral support mounting holes)
B Dimension (center of engine mount mounting holes to rear frame-type integral support mounting holes)
FR Direction of travel
