Fuel Door: Service and Repair

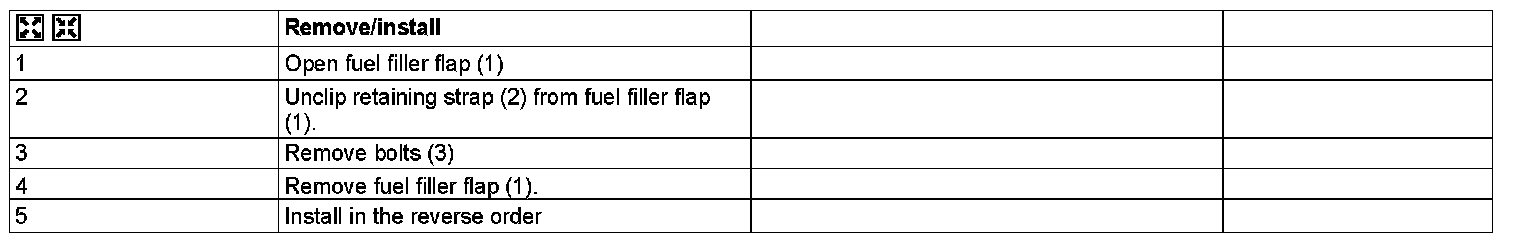

AR88.60-D-6023SD Remove/Install Tank Flap

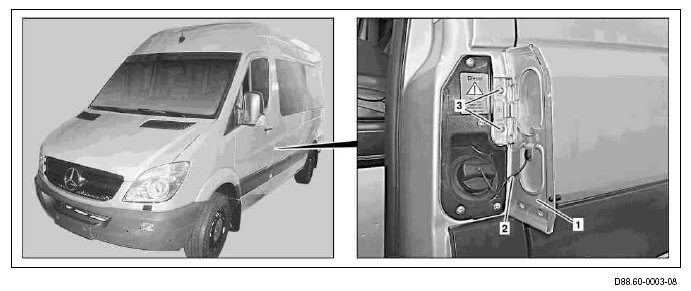

1 Fuel filler flap
2 Retaining strap
3 Bolts
