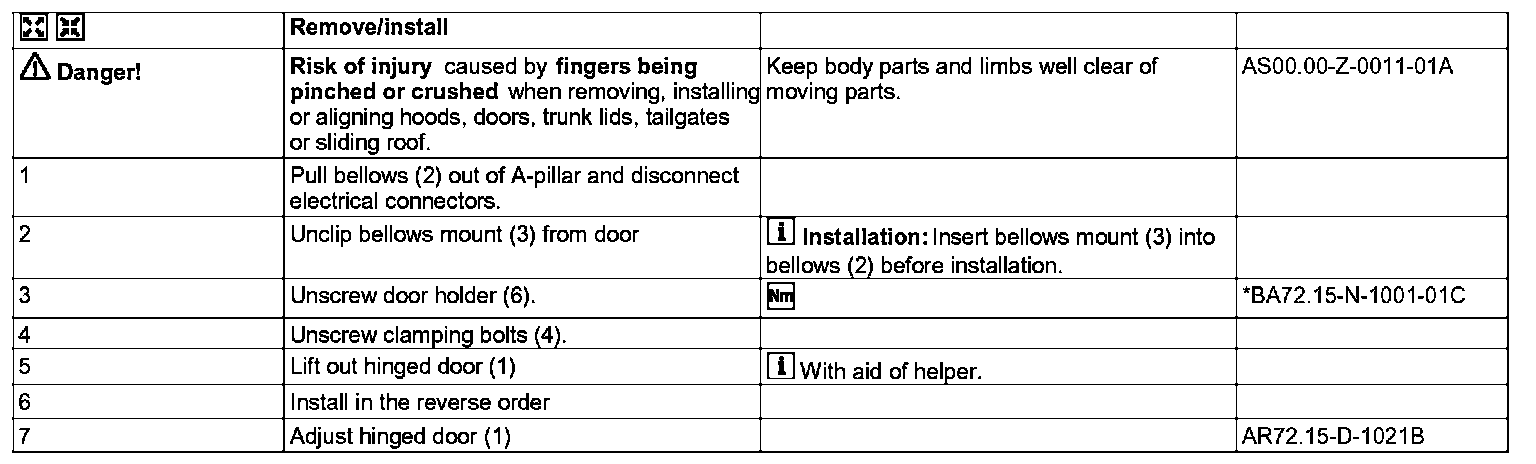

AR72.15-D-1051B Remove/Install Hinged Door




AR72.15-D-1051B Remove/Install Hinged Door








1 Hinged door
2 Bellows
3 Bellows mount
4 Clamp screws

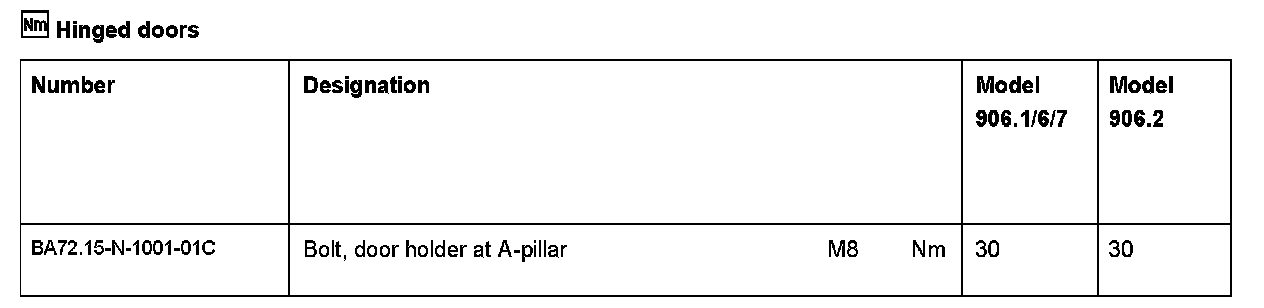

5 Bolt
6 Door holder
