AR72.15-D-1021-01B Adjust Door Gap and Ridge Pattern For Hinged Door

AR72.15-D-1021-01B Adjust Door Gap And Ridge Pattern For Hinged Door










129 589 03 21 00, Feeler gauge











1. Loosen bolts (1) on door hinges.

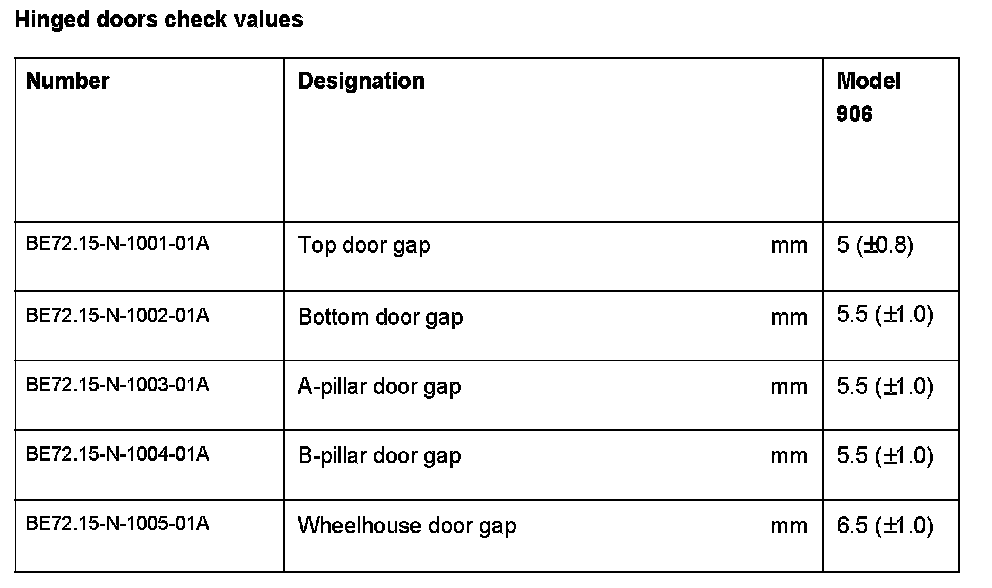

2. Adjust door gap by vertically and horizontally adjusting door.
3. Adjust ridge pattern by vertically adjusting door.

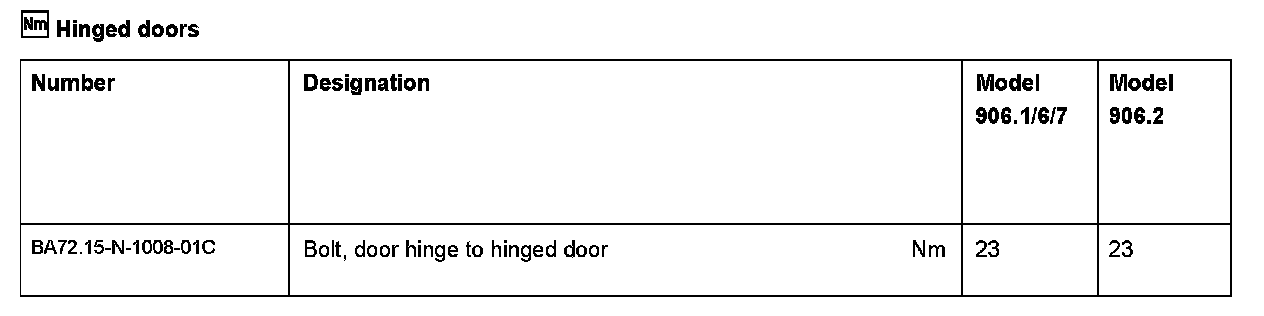

4. Tighten screws (1).
