Front Bumper: Service and Repair

AR88.20-D-2050SD Disassemble/Assemble Front Bumper

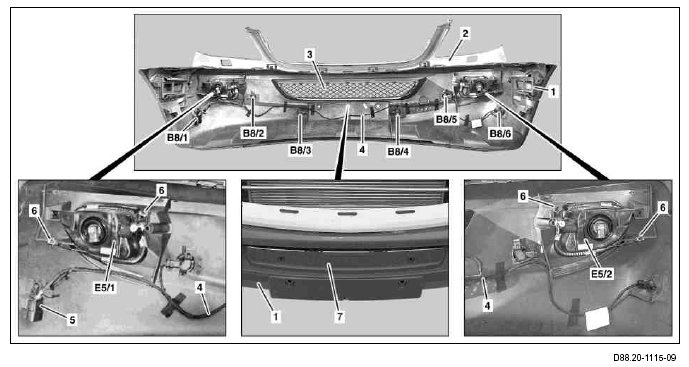

Shown vehicle without code (ZX8) Brand scope Dogde or without code (ZX9)

Freightliner (FTL) brand scope

1 Front bumper
2 Front cover
3 Air grille
4 Parktronic wiring harness (with code (EZ8) Parktronic system (PTS))
5 Electrical connector (with code (EZ8) Parktronic system (PTS))
6 Bolt (with code (L16) Halogen front fog lamps)
7 Step platform
B8/1 Outer left front Parktronic sensor (with code (EZ8) Parktronic system (PTS))
B8/2 Center left front Parktronic sensor (with code (EZ8) Parktronic system (PTS))
B8/3 Inner left front Parktronic sensor (with code (EZ8) Parktronic system (PTS))
B8/4 Inner right front Parktronic sensor (with code (EZ8) Parktronic system (PTS))
B8/5 Center right front Parktronic sensor (with code (EZ8) Parktronic system (PTS))
B8/6 Outer right front Parktronic sensor (with code (EZ8) Parktronic system (PTS))
E5/1 Left front fog lamp (with code (L16) Halogen front fog lamps)
E5/2 Right front fog lamp (with code (L16) Halogen front fog lamps)







110 589 03 59 00, Mounting wedge
