Front Bumper Reinforcement: Service and Repair

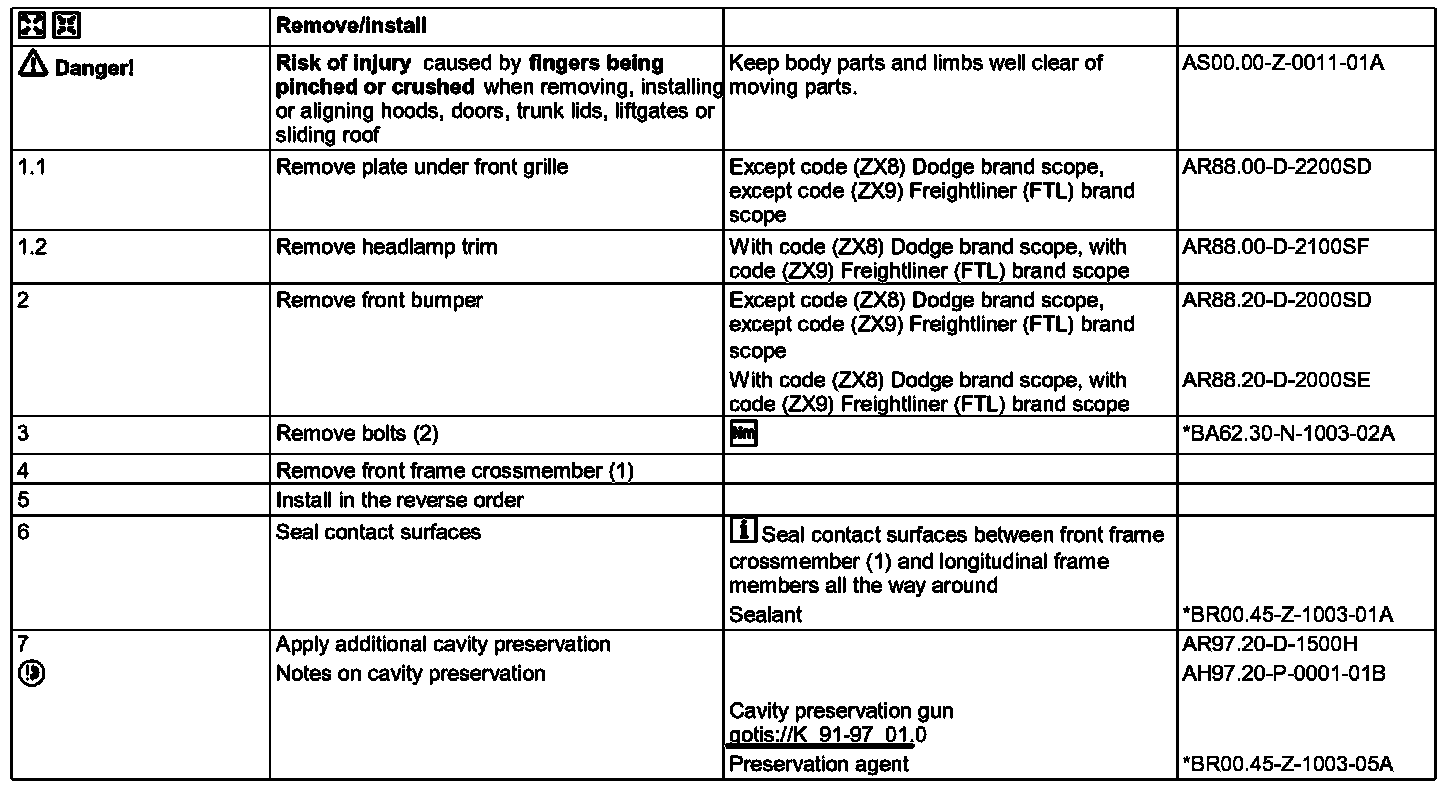

AR62.30-D-0001H Remove/Install Front Frame Cross Member

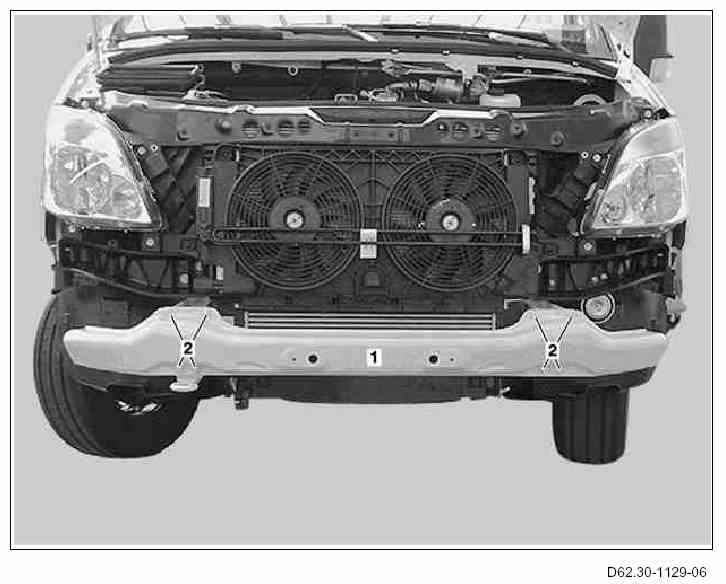

1 Cross member, front
2 Bolts
