GF54.21-D-6080H Overhead Control Panel (OCP (DBE)) Control Unit Component Description




GF54.21-D-6080H Overhead Control Panel (OCP [DBE]) Control Unit Component Description

- with CODE (LD0) Dome lamp with reading lamp for driver/front passenger

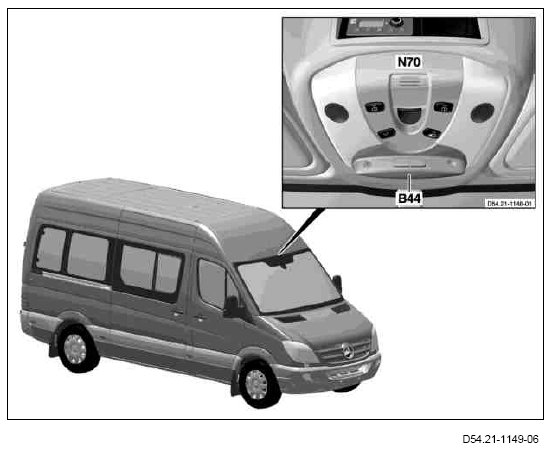

Shown with code (D27) Electr. glass tilting/ sliding roof or with code (D24) Power tilting/sliding roof in passenger compartment, with code (EH3) Universal preinstallation for networked mobile phone and with code (FZ4) Breaking and entering/vehicle theft alarm with interior protection and tow-away protection or with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and rechargeable-battery horn
N70 DBE control unit

Location
The DBE control unit is located in the center of the driver compartment roof area.

Task
The DBE control unit reads in the integrated buttons, is a master control unit for the anti-theft alarm system [EDW] and it is connected to the Controller Area Network bus Class B (interior) (CAN-B).
Generally the DBE control unit regulates the following systems or supports the master control units:
- Interior lights (IBL)
- Tilting/sliding roof (SHD), with code (D27) Electr. glass tilting/ sliding roof
- Rear sliding roof unit (SDE-H), for model 906.6/7 with code (D24) Power tilting/sliding roof in passenger compartment
- Rain/light sensor (B38/2), with code (JA5) Light/rain sensor
- Telephone, with code (EH3) Universal preinstallation for networked mobile phone
- Anti-theft alarm system, with code (FZ5) Anti-theft alarm system (ATA [EDW])
- Anti-theft alarm system, with code (FZ4) Breaking and entering/ vehicle theft alarm with interior protection and tow-away protection
- Anti-theft alarm system, with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and rechargeable-battery horn

IBL
The following functions are controlled for the IBL:
- Actuation of left front dome lamp (N70e1), right front dome lamp (N70e2), reading lamp, left front (N70e3), reading lamp, right front (N70e4)
- Actuation of switch and controls illumination for integrated buttons

Tilting/sliding roof, with code (D27) Electr. glass tilting/sliding roof
The front tilting/sliding roof motor (M12m1) is controlled for the tilting/ sliding roof.

Rear sliding roof unit, for model 906.6/7 with code (D24) Power tilting/sliding roof in passenger compartment
The rear tilting/sliding roof motor (M12/1m1) is controlled for the rear sliding roof unit.

Rain/light sensor, with code (JA5) Light/rain sensor
In the rain/light sensor the signals are read in and converted to CAN-B messages or vice versa.

Telephone, with code (EH3) Universal preinstallation for networked mobile phone
The signals of the hands-free system microphone with overhead control panel for LHD vehicles (B25/13) are read in for the telephone and converted to CAN-B messages and vice versa.

Anti-theft alarm system, with code (FZ5) Anti-theft alarm system (ATA [EDW])
The following functions are controlled for the anti-theft alarm system:
- Actuation of anti-theft alarm system
- Monitoring status of sliding doors (with code (T16) Right load compartment sliding door or with code (T19) Left sliding door), the driver, front passenger and hinged rear doors, the EDW hood switch (S62), stationary heater (STH) (with code (H12) Auxiliary heater (warm water)), tandem heater booster (with code (HZ5) Warm water auxiliary heater 10 kW with timer), the heater booster (ZUH) (with code (HZ9) Heater booster, diesel) as well as the heater (except code (HH9) Regulated air conditioning, (Tempmatic)) or Tempmatic (TM) (with code (HH9)
Regulated air conditioning, (Tempmatic))

- Actuation of IBL for anti-theft alarm system alarm
- Signaling horn (H1) switch-on request for anti-theft alarm system alarm
- Turn signal switch-on request for anti-theft alarm system activation, deactivation or alarm

Anti-theft alarm system, with code (FZ4) Breaking and entering/ vehicle theft alarm with interior protection and tow-away protection
The following functions are controlled for the anti-theft alarm system:
- Actuation of anti-theft alarm system
- Voltage supply of front interior protection sensor (B44) with integrated Inclination sensor, center interior protection sensor (B44/1) and the rear interior protection sensor (B44/2)
- Monitoring status of sliding doors (with code (T16) Right load compartment sliding door or with code (T19) Left sliding door), the driver, front passenger and hinged rear doors, the EDW hood switch, stationary heater (STH) (with code (H12) Auxiliary heater (warm water)), tandem heater booster (with code (HZ5) Warm water auxiliary heater 10 kW with timer), the heater booster (ZUH) (with code (HZ9) Heater booster, diesel) as well as the heater (except code (HH9) Regulated air conditioning, (Tempmatic)) or Tempmatic (TM) (with code (HH9) Regulated air conditioning, (Tempmatic))
- Monitoring of interior protection (IRS)
- Monitoring of tow-away protection (AS)
- Monitoring of left heated rear window (R1/1) and right heated rear window (R1/2)
- Actuation of IBL for anti-theft alarm system alarm
- Signaling horn switch-on request for anti-theft alarm system alarm
- Turn signal switch-on request for anti-theft alarm system activation, deactivation or alarm

Anti-theft alarm system, with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and rechargeable-battery horn
The following functions are controlled for the anti-theft alarm system:
- Actuation of anti-theft alarm system
- Voltage supply of front interior protection sensor with integrated Inclination sensor, center interior protection sensor and the rear interior protection sensor
- Monitoring status of sliding doors (with code (T16) Right load compartment sliding door or with code (T19) Left sliding door), the driver, front passenger and hinged rear doors, the EDW hood switch, stationary heater (STH) (with code (H12) Auxiliary heater (warm water)), tandem heater booster (with code (HZ5) Warm water auxiliary heater 10 kW with timer), the heater booster (ZUH) (with code (HZ9) Heater booster, diesel) as well as the heater (except code (HH9) Regulated air conditioning, (Tempmatic)) or Tempmatic (TM) (with code (HH9) Regulated air conditioning, (Tempmatic))
- Monitoring of interior protection
- Monitoring of trailer control
- Monitoring of left heated rear window and right heated rear window
- Actuation of IBL for anti-theft alarm system alarm
- Actuation of battery-operated horn (H3/1) with EDW alarm
- Turn signal switch-on request for anti-theft alarm system activation, deactivation or alarm

The DBE control unit reads in the following integrated keys and buttons:
- Interior protection switch (B44s1), with code (FZ4) Breaking and entering/vehicle theft alarm with interior protection and tow away protection or with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and battery-operated horn, over the front interior protection sensor with integrated inclination sensor
- Tow-away protection button (B44s2), with code (FZ4) Breaking and entering/vehicle theft alarm with interior protection and tow-away protection or with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and battery-operated horn, over the front interior protection sensor with integrated inclination sensor
- Tilting/sliding roof control button (N70s1), with code (D27) Electr. glass tilting/sliding roof or for model 906.6/7 with code (D24) Power tilting/sliding roof in passenger compartment
- Interior lamp ON and OFF button (N70s2)
- Left front reading lamp button (N70s3)
- Right front reading lamp button (N70s4)
- Door contact ON and OFF button (N70s5)

If the DBE control unit detects actuation of the integrated keys and buttons for t ≥ 20 s, so the signal is ignored and a fault saved. An actuation signal is not issued directly nor sent to CAN-B.
If the integrated keys or buttons are actuated again then the DBE control unit must detect beforehand the park position of each respective key or button for t > 1 s.

The DBE control unit also reads in the following sensors and switches:
- Rain/light sensor, with code (JA5) Light/rain sensor
- Hands-free system microphone with overhead control panel for LHD vehicles, with code (EH3) Universal preinstallation for networked mobile phone
- Battery-operated horn, with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and battery-operated horn
- Front interior protection sensor with integrated inclination sensor, with code (FZ4) Breaking and entering/vehicle theft alarm with interior protection and tow-away protection or with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and battery-operated horn
- Center interior protection sensor, with code (FZ4) Breaking and entering/vehicle theft alarm with interior protection and tow- \away protection or with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and battery-operated horn, over the front interior protection sensor with integrated inclination sensor
- Rear interior protection sensor, with code (FZ4) Breaking and entering/vehicle theft alarm with interior protection and tow- \away protection or with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and battery-operated horn, over the front interior protection sensor with integrated inclination sensor
- Front tilting/sliding roof Hall sensor (M12b1), with code (D27) Electr. glass tilting/sliding roof
- Front tilting/sliding roof Hall sensor (M12b2), with code (D27) Electr. glass tilting/sliding roof
- Rear tilting/sliding roof Hall sensor (M12/1b1), with code (D24) Power tilting/sliding roof in passenger compartment
- Rear tilting/sliding roof Hall sensor (M12/1b2), with code (D24) Power tilting/sliding roof in passenger compartment
- ATA [EDW] hood switch, with code (FZ5) Anti-theft alarm system (ATA [EDW]), with code (FZ4) Breaking and entering/ vehicle theft alarm with interior protection and tow-away protection or with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and battery-operated horn

The DBE control unit also communicates with the following control units over CAN-B:
- With the EIS [EZS] control unit (N73)
- The DBE control unit receives, e.g. "CL_ST (Central locking ZV) status)"

- With the instrument cluster (A1)
- The DBE control unit transmits, e.g. "HOOD_OPE (Engine hood open)"
- The DBE control unit receives, e.g. "RLS_REC (Rain/light sensor sensitivity setting)"

- With the SAM control unit (N10)
- The DBE control unit receives, e.g. "RLS_ST (Rain/light sensor status)"
- The DBE control unit receives, e.g. "RLS_SYNC0 (Rain/light sensor synchronization)"

- With the driver door control unit (N69/1)
- The DBE control unit receives, e.g. "CF_TF (Convenience feature)"

- With left sliding door control unit (N69/7), with code (T56) Electrical actuation for left sliding door or with code (T50) Electrical closing assist for sliding door(s)
- The DBE control unit receives, e.g. "LSD_ST (Left sliding door status)"

- With right sliding door control unit (N69/6), with code (T55) Electrical actuation for right sliding door or with code (T50) Electrical closing assist for sliding door(s)
- The DBE control unit receives, e.g. "RSD_ST (Right sliding door status)"

- With the OBF control unit (N72/1)
- The DBE control unit transmits, e.g. "ATA_ST (Anti-theft alarm system status)"

- With the warm water auxiliary heating control unit (N33/3), with code (H12) Auxiliary heater (warm water) or with code (HZ5) Warm water auxiliary heater 10 kW with timer
- The DBE control unit receives, e.g. "STH_ON (STH switched on)

- With the AAC [KLA] control and operating unit (S98)
- The DBE control unit transmits, e.g. "RLS_SYNC1 (Rain/light sensor synchronization), Wiper_ON_1 (Wiper request stage 1)"
- The DBE control unit receives, e.g. "REST_ACT (Residual engine heat active)", with code (HH9) Regulated air conditioning, (Tempmatic)

- With the warm water auxiliary heater 2 control unit (N33/2), with code (HZ9) Heater booster, diesel or with code (HZ5) Warm water auxiliary heater 10 kW with timer
- The DBE control unit receives, e.g. "HBO_ON (Heater booster function switched on)"

- With the PSM control unit (N26/15), with code (ED5) Parameterizable special module (PSM)
- The DBE control unit transmits, e.g. "REAR_ON (Switch on rear lighting)"
- The DBE control unit receives, e.g. "PSM_IL_ALARM (Switch on interior lights)"

- With the radio/radio with navigation (N87/1), with code (EF9) Sound 20 radio, with code (EN4) COMAND with TMC interface or with code (EN8) Sound 50 APS radio
- The DBE control unit transmits, e.g. "LSR_ST (Rain/light sensor status), NIGHT (Day/night signal)"

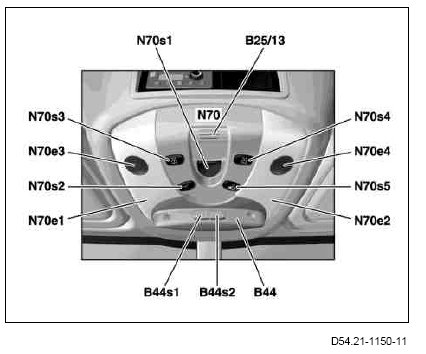

Body shown with code (D27) Electr. glass tilting/sliding roof or alternatively with code (D24) Power tilting/sliding roof in passenger compartment, with code (EH3) Universal preinstallation for networked mobile phone and either with code (FZ4) Breaking and entering/vehicle theft alarm with interior protection and tow-away protection or with code (FY1) Anti-theft alarm system 2 with interior protection, tow-away protection and battery-operated horn
B25/13 Hands-free system microphone with overhead control panel for LHD vehicles
B44 Front interior protection sensor
B44s1 Interior protection switch
B44s2 Towing sensor button
N70 DBE control unit
N70e1 Left front dome lamp
N70e2 Right front dome lamp
N70e3 Left front reading lamp
N70e4 Right front reading lamp
N70s1 Tilting/sliding roof control button
N70s2 Interior lamp ON and OFF button
N70s3 Left front reading lamp button
N70s4 Right front reading lamp button
N70s5 Door contact ON and OFF button
