AN82.61-D-0001-01A Retrofit Wiring Harness

AN82.61-D-0001-01A Retrofit Wiring Harness

DANGER: Risk of injury caused by scraping or cutting body parts on sharp vehicle parts.

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. AS00.00-Z-0017-01A
Deburr repair panels.







1 Remove driver-side footwell ventilation.
The footwell ventilation is secured by a bolt.

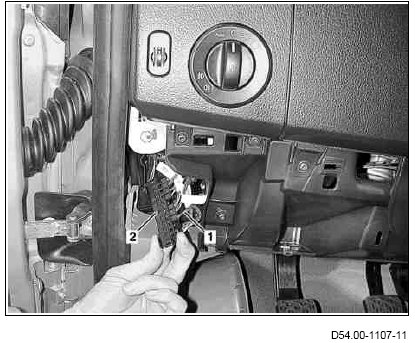

2 Route CAN wiring harness (1) from radio recess to voltage distributor (2).
The voltage distributor (2) is located above the fuse box on the driver side.

3 Clip connector from bottom end of the CAN wiring harness (1) into a free slot in the voltage distributor (2).
4 Insert connector from top end of CAN wiring harness (1) into slot in the radio.
5 Fix CAN wiring harness (1) in place by appropriate means.
Pay attention to routing which is without kinks and free from chafing in order to avoid the creation of noise and damage.

6 Install driver-side footwell ventilation.
