Compact Disc Player (CD): Service and Repair

AZ82.60-D-0012A Retrofit CD Radio

- with CODE (ER0) Radio preinstallation with antenna and 2 speakers


- with CODE (EN0) Sound 5 radio

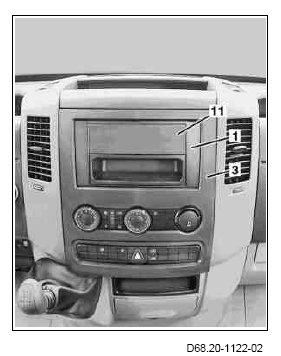

Shown on radio preinstallation with antenna and 2 speakers, code ER0
1 DIN-slot installation frame (2 slots)
3 Covering
11 Blind cover

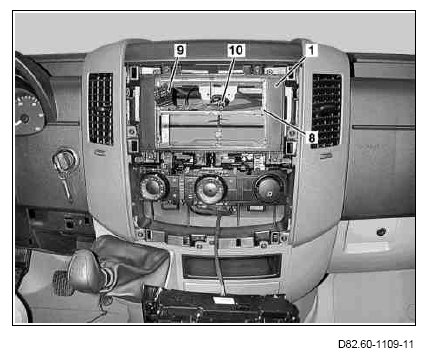

Shown on Sound 5 radio, code EN0
3 Covering
4 Stowage compartment







1 DIN-slot installation frame (2 slots)
8 Retaining frame
9 Radio connector
10 Antenna plug

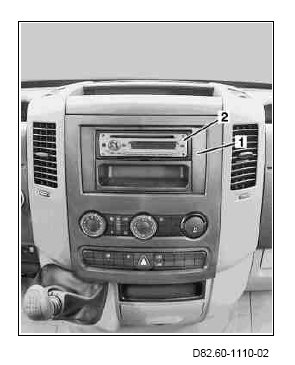

Shown on Sound ONE radio
1 DIN-slot installation frame (2 slots)
2 Radio







115 589 03 59 00, Long wedge
