Compact Disc Player (CD): Description and Operation

GF82.64-D-3112H CD Player With Changer Component Description

- with CODE (EP5) CD changer







A2/6 CD changer

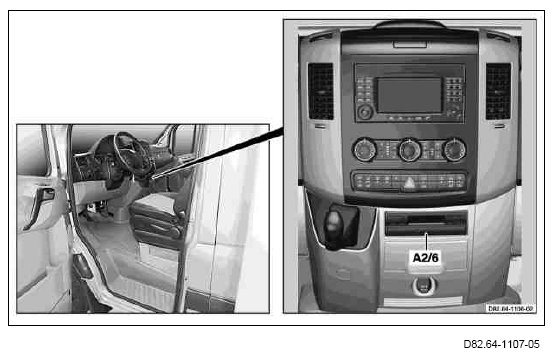

Location
The CD changer is installed in the instrument panel underneath the OBF control unit (N72/1).

Task
- Playing audio CDs
- Changing CDs contained in the magazine compartment

Design
- Automatic feed for 6 CDs
- Media Oriented System Transport (MOST) interface
- Wake-up line input

Controlling
The CD changer is controlled via MOST and an electrical wake-up line by the radio/radio with navigation (N87/1) (with code (EN8) Sound 50 APS radio) or by the radio/radio with navigation (with code (EN4) COMAND with TMC interface), depending on which is equipped. All 6 CDs can be loaded centrally using the single insertion slot.
