Removal and Replacement

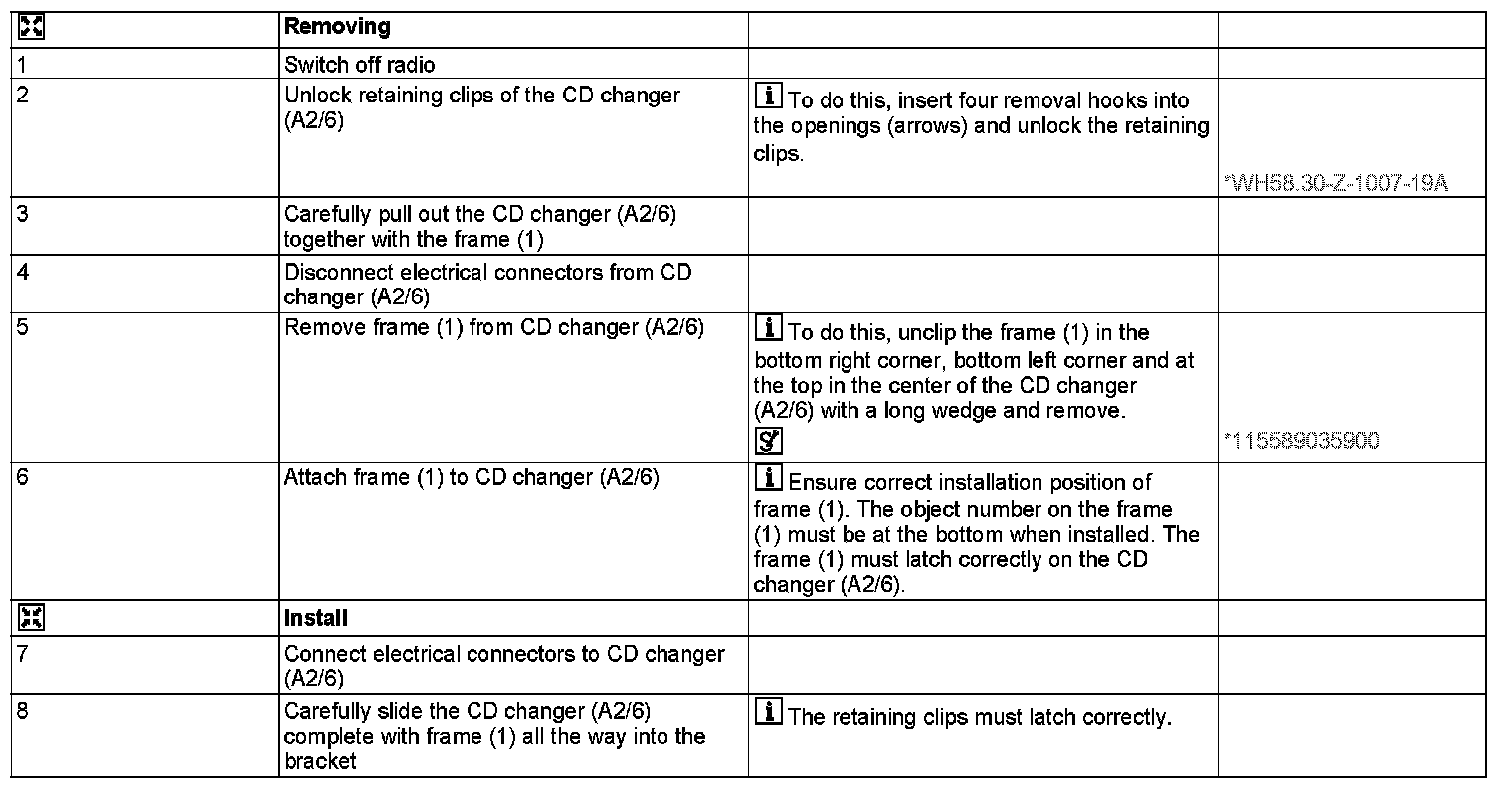

AR82.64-D-7508A Remove/Install CD Changer

- with CODE (EP5) CD changer

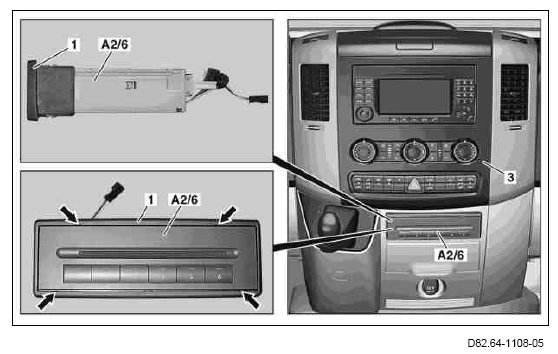

1 Frame
A2/6 CD changer







115 589 03 59 00, Long wedge
