AZ82.64-D-0001C Retrofit CD Changer

AZ82.64-D-0001C Retrofit CD Changer
MODEL 906.### #S up to 347365, 906.### #N up to 402762
- except CODE (EF9) Sound 20 radio
- except CODE (EN8) Sound 50 APS radio
- except CODE (EN4) COMAND with TMC interface mit CD-Wechsler f�r Radio Sound 5 oder Radio Sound ONE

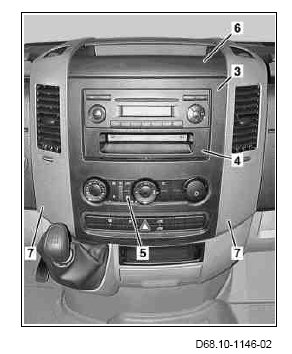

Shown on Sound 5 radio, code EN0
3 Covering
4 Stowage compartment







Illustration shows vertical installation position
1 Wiring harness
A2/6 CD changer







Illustration shows horizontal installation position
A2/6 CD changer












115 589 03 59 00, Long wedge
