CD Changer: Adjustments

AZ82.64-D-0001-11C Adjusting Installation Position Of CD Changer
- except CODE (EF9) Sound 20 radio
- except CODE (EN8) Sound 50 APS radio
- except CODE (EN4) COMAND with TMC interface mit CD-Wechsler f�r Radio Sound 5 oder Radio Sound ON

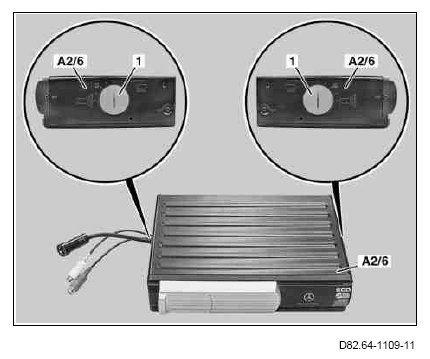

1 Twist the adjusting devices (1) so that the arrows on the adjusting devices (1) point to the planned installation position for the CD changer (A2/6).
The arrows on the adjusting devices (1) must point to the same installation position on both sides of the CD changer (A2/6).
