AZ82.60-D-0014A Retrofit iPod Interface

AZ82.60-D-0014A Retrofit iPod Interface

- with CODE (CL4) Multifunction steering wheel with trip computer
- with CODE (EF9) Sound 20 radio


- with CODE (CL4) Multifunction steering wheel with trip computer
- with CODE (EN8) Sound 50 APS radio


- with CODE (CL4) Multifunction steering wheel with trip computer
- with CODE (EN4) COMAND with TMC interface
- with CODE (CL4) Multifunction steering wheel with trip computer


- with CODE (CL4) Multifunction steering wheel with trip computer
- with CODE (EJ2) Audio 20


- with CODE (CL4) Multifunction steering wheel with trip computer
- with CODE (EJ3) Audio 20 with CD changer


- with CODE (CL4) Multifunction steering wheel with trip computer
- with CODE (EJ4) Audio 50 APS


- with CODE (CL4) Multifunction steering wheel with trip computer
- with CODE (EJ5) Audio 50 APS with DVD changer


- with CODE (CL4) Multifunction steering wheel with trip computer
- with CODE (EJ6) COMAND APS


- with CODE (CL4) Multifunction steering wheel with trip computer
- with CODE (EJ7) COMAND APS with DVD changer

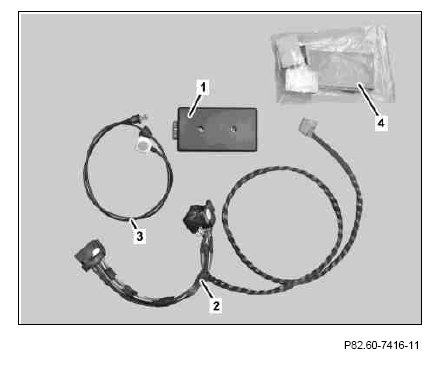

Scope of supply
1 iPod interface
2 Electrical wiring harness for iPod interface
3 Electrical wiring harness for iPod
4 Mounting materials







Connection scheme
1 iPod interface
2 Electrical wiring harness for iPod interface
3 Electrical wiring harness for iPod
5 Black coupling (vehicle wiring harness)
7 Black connector (electrical wiring harness for iPod interface)
8 Black coupling (electrical wiring harness for iPod interface)
9 Black coupling (electrical wiring harness for iPod)
10 White coupling (electrical wiring harness for iPod)
11 Blue coupling (electrical wiring harness for iPod interface)
N87/1 Radio/radio with navigation
N87/6 Radio/radio with navigation (new generation)
