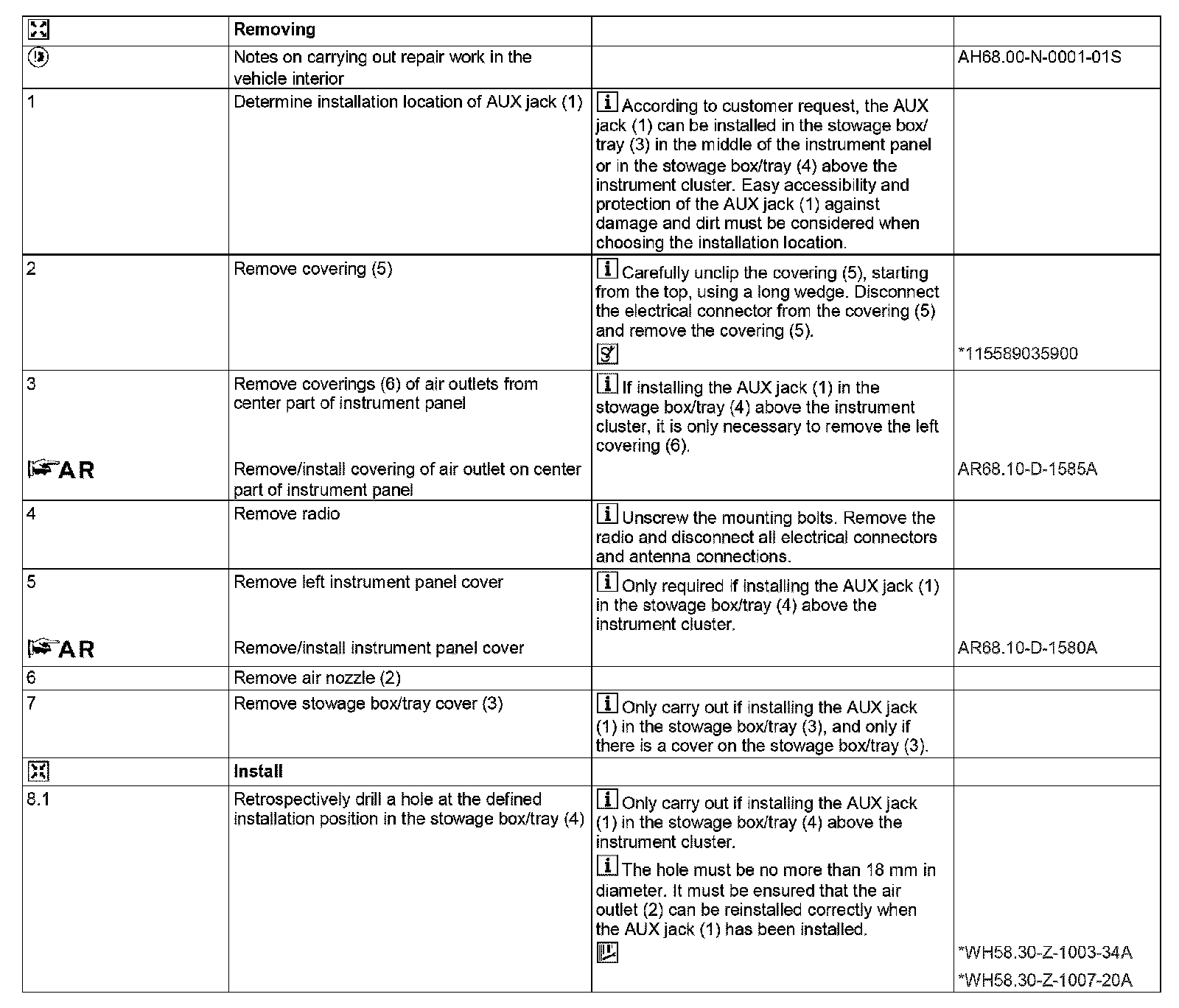

Auxiliary Input / Output Jack: Service and Repair

AZ82.60-D-0021A Retrofit AUX Socket

- with CODE (EN0) Sound 5 radio


- with CODE (EF9) Sound 20 radio


- with CODE (EN8) Sound 50 APS radio


- with CODE (EN4) COMAND with TMC interface







Shown on Sound 5 radio, code EN0
2 Air nozzle
3 Storage shelf
4 Storage shelf
5 Covering
6 Surrounds







Shown installed in stowage box/tray (3) in the middle of the instrument panel
1 AUX jack
3 Storage shelf







Shown installed in stowage box/tray (4) above the instrument cluster
1 AUX jack
2 Air nozzle
4 Storage shelf












115 589 03 59 00, Long wedge
