AN54.65-D-0030-04S Retrofit circuit 15 wiring harness

AN54.65-D-0030-04S Retrofit Circuit 15 Wiring Harness

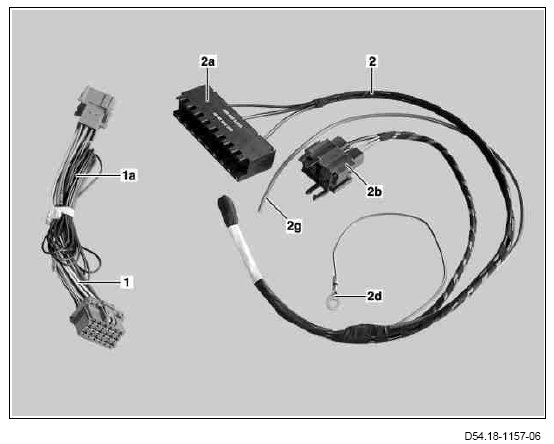

1 Circuit 15 wiring harness
1a Circuit 15 cable
2 Relay wiring harness
2a Fuse block, 9-pin
2b Relay holder
2d Circuit 31 cable
Circuit 30 cable

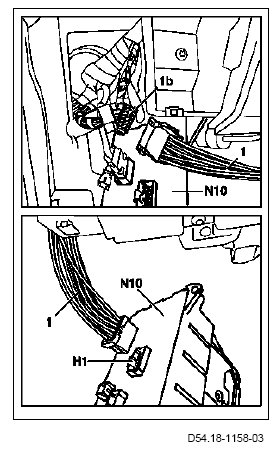

1 Detach SAM control unit (N10) and detach multiplug (1b) from SAM control unit (N10), slot (H1).
2 Connect wiring harness for circuit 15 (1) between multiplug (1b) and SAM control unit (N10), slot (H1)

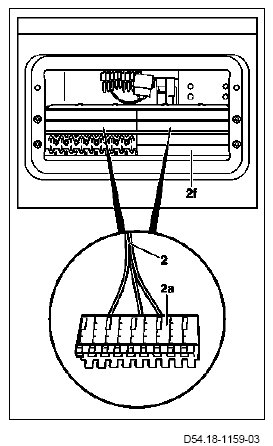

3 Lead the wiring hardness for relay (2) through at the fuse box (2f) at the point where a circuit-15 supply is required.
4 Insert the 9-fuse fuse block (2a) there and lock in position.







5 Route the line for circuit 15 (1a), brown/black along at the entryway steps and lead through into the driver seat frame.

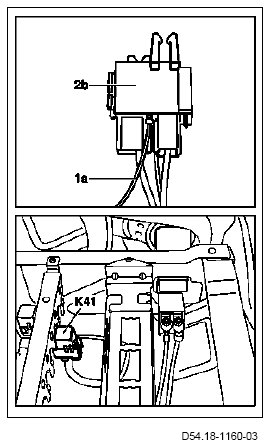

6 Connect line for circuit 15 (1a) to relay carrier (2b).
7 Install relay carrier (2b) with relief relay circuit 15 (K41) on cross strut in driver seat frame.
8 Route wiring harness for relay (2) along vehicle wiring harness and tie up.







9.1 Route line circuit 30 (2g) and connect cable lug (2h) to cutoff relay.
On vehicles with second battery.







9.2 Route line of terminal 30 (2g) and connect cable lug (2h) with electrical fuse 50 A to prefuse block connector 4.
On vehicles without second battery:
The prefuse block at the battery must be removed beforehand.

10 Fasten line for terminal 31 (2d) to the ground support point in the driver seat frame.
