AN82.70-D-8969-04A Retrofit Hands-Free System Microphone

AN82.70-D-8969-04A Retrofit Hands-Free System Microphone


Notes on carrying out repair work in the vehicle interior AH68.00-N-0001-01S







1 Route microphone cable starting from left A-pillar below the dashboard to upper DIN slot of the radio.
Fix microphone cable in place by appropriate means to avoid damage and noise.

2 Fasten microphone cable to existing wiring harness in lower area of the A-pillar using two cable ties.
3 Remove left A-pillar trim panel (2).

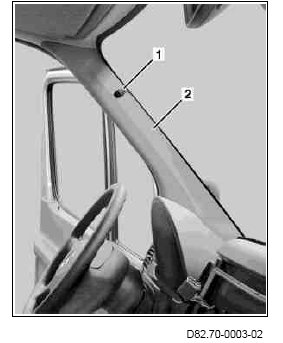

4 Stick microphone (1) for hands-free system in overhead space on A-pillar trim panel (2).
Detach protective foil.
