AN82.70-D-0006SB Retrofit Telephone Console

AN82.70-D-0006SB Retrofit Telephone Console

- with CODE (ER0) Radio preinstallation with antenna and 2 speakers
- with CODE (EN0) Sound 5 radio

Hands-free system, non-networked

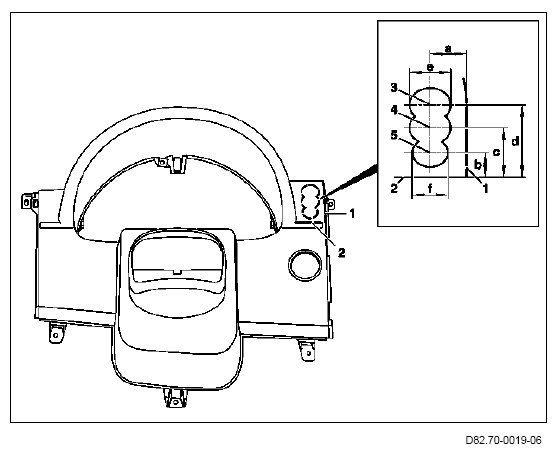

1 Reference edge, vertical
2 Reference edge, horizontal
a 23 mm
b 20 mm
c 37 mm
d 56 mm
e Dia. 28 mm
f Dia. 24 mm

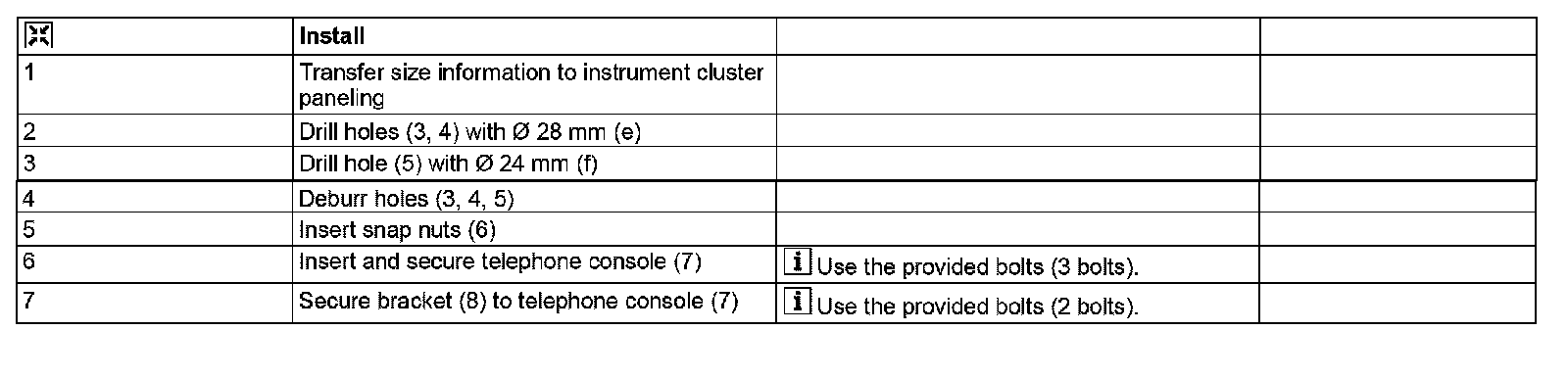

6 Snap nuts

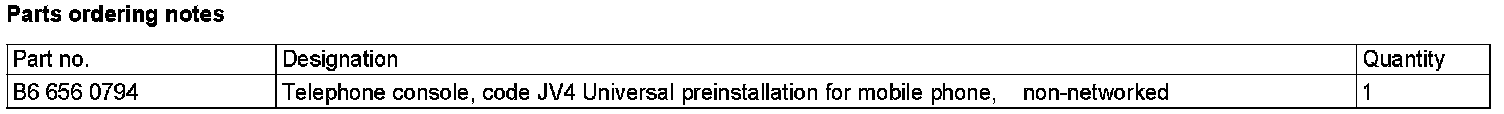

7 Telephone console
8 Bracket
