AN82.70-D-0006SA Retrofit Telephone Console

AN82.70-D-0006SA Retrofit Telephone Console

- with CODE (EF9) Sound 20 radio
- with CODE (EN4) COMAND with TMC interface
- with CODE (EN8) Sound 50 APS radio

Hands-free system, networked

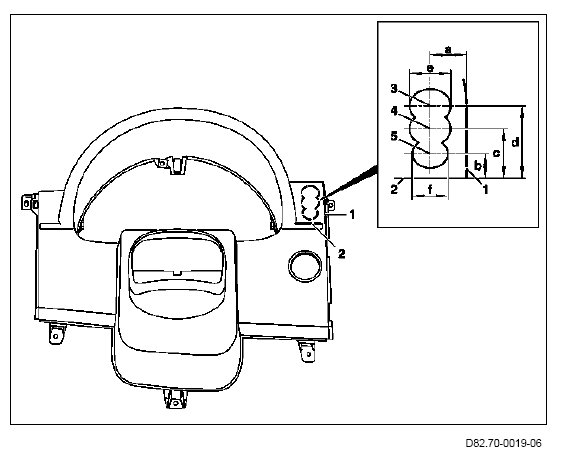

1 Reference edge, vertical
2 Reference edge, horizontal
a 23 mm
b 20 mm
c 37 mm
d 56 mm
e Dia. 28 mm
f Dia. 24 mm

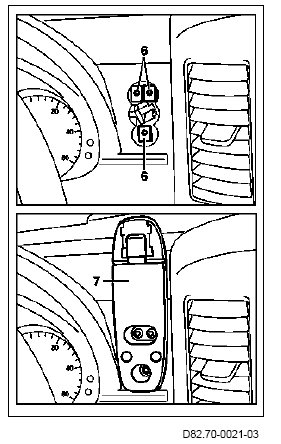

6 Snap nuts
7 Telephone console
