AN82.70-D-0002-03SA Retrofit Telephone Cable Harness

AN82.70-D-0002-03SA Retrofit Telephone Cable Harness

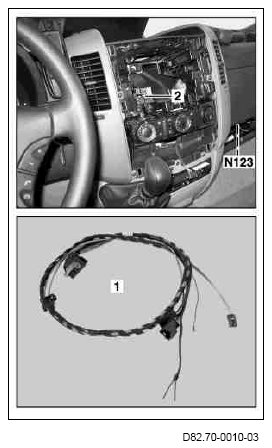

1 Route telephone wiring harness (1) from radio recess to telephone control unit (N123).







2 Connect telephone wiring harness (1) to telephone control unit (N123).

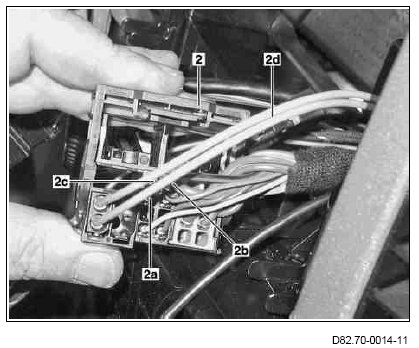

3 Unpin lines (2a, 2b, 2c) from slots 12, 15, 16 of 44-pin connector housing (2).
4 Disconnect lines (2a, 2b, 2c) from pins.
5 Double-crimp and pin red line of telephone wiring harness (1) to separate red line (2a) (slot 15).
6 Double-crimp and pin brown line of telephone wiring harness (1) to separate brown line (2b) (slot 12).
7 Double-crimp and pin orange line to separate line (2c) (slot 16).
8 Plug in the MOST ring plug (2d).







9 Connect line from microphone to connector (4).

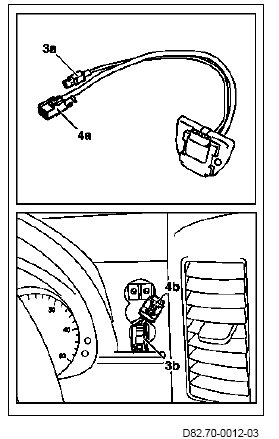

10 Connect telephone antenna to telephone console adapter and connect electrical plug (3a) to connector (3b).
11 Route line for telephone console with multiplug (4b) to instrument cluster paneling and pull out of opening.
12 Connect telephone console adapter by connecting multiplug (4a) to multiplug connector (4b).
