AN82.61-D-7405-02A Retrofit the Telephone Box

AN82.61-D-7405-02A Retrofit The Telephone Box

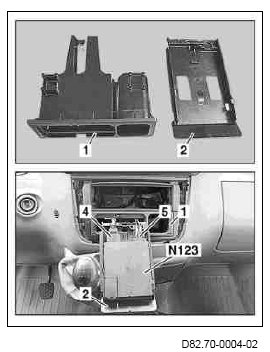

1 Remove drawer (2) from bracket (1)
Release catch on underside of drawer (2).

2 Route the connecting line (4) between the telephone control unit (N123) and radio from the lower DIN slot into the upper DIN slot.
3 Insert bracket (1) into lower DIN slot.
4 Connect antenna line (5) and connecting line (4) to telephone control unit (N123).
5 Position telephone control unit (N123) in drawer (2).
6 Install drawer (2) in bracket (1).
7 Insert bracket (1) complete with drawer (2) into lower DIN slot.
