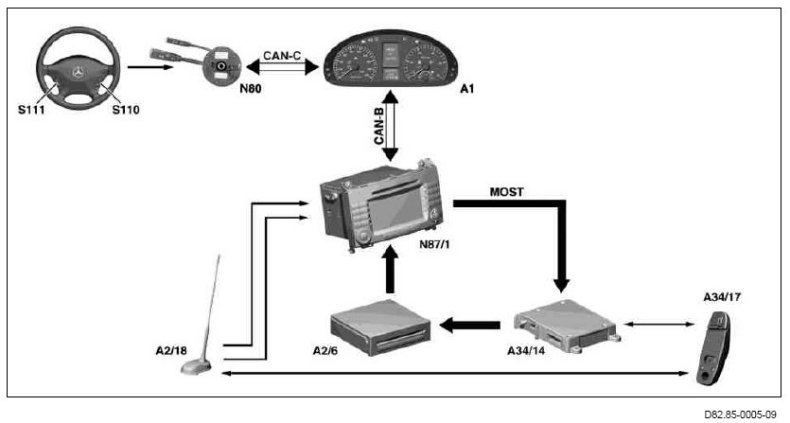

GF82.70-D-0004-02H Universal Portable CTEL Interface (UPCI) Function Diagram

GF82.70-D-0004-02H Universal Portable CTEL Interface (UPCI) Function Diagram
- with CODE (EH3) Universal preinstallation for networked portable CTEL







A1 Instrument cluster
A2/6 CD changer
A2/18 Antenna amplifier
A4/17 Mobile phone holder
A34/14 Telephone control unit
N80 MRM control unit
N87/1 Radio/radio with navigation
S110 Right multifunction steering wheel button group
S111 Left multifunction steering wheel button group
