GF80.20-D-4020H Central Locking Actuator, Component Description

GF80.20-D-4020H Central Locking Actuator, Component Description








M14/5 Front passenger door ZV actuator
M14/6 Driver door ZV actuator
M14/7 Rear-end door ZV actuator
M14/8 DOKA left door ZV actuator
M14/9 DOKA right door ZV actuator
M14/27 Right sliding door CL [ZV] actuator
M14/28 Left sliding door CL [ZV] actuator

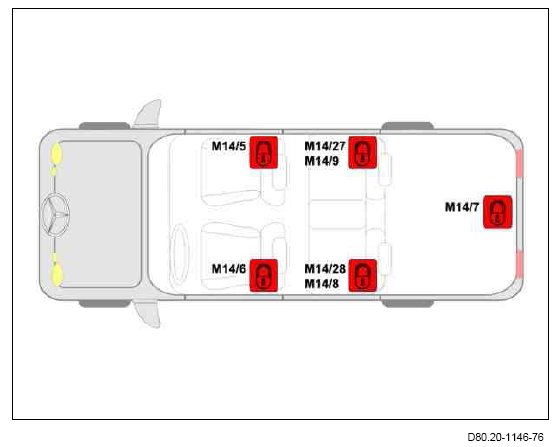

Location
The CL actuators are located in the corresponding door.

Task
The CL actuators serve for locking and unlocking the rotary tumbler lock.

The locking status is not evaluated on the left and right doors crewcab). Only the opening status is evaluated.

Locking and unlocking
The CL driver door motor is actuated by the drive door control unit and the front passenger door CL motor is actuated by the SAM control unit.

Status poll (door open or closed)
The status is checked by the CL rotary tumbler switch on the rotary tumbler lock.
