Home >> Mercedes Benz Truck >> 2010 >> Sprinter 2500 Panel (906.637) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Service and Repair >> SM15.30-D-0003B Replace Starter Wiring Harness

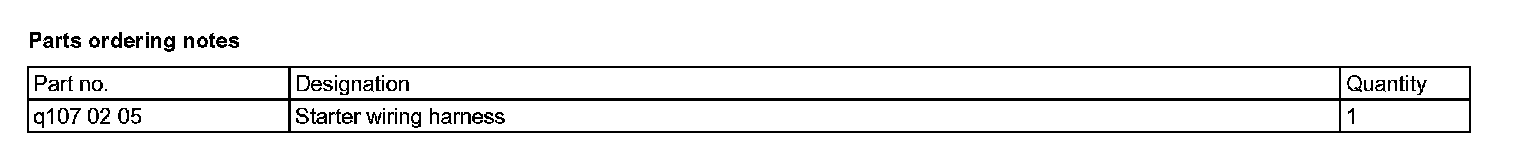

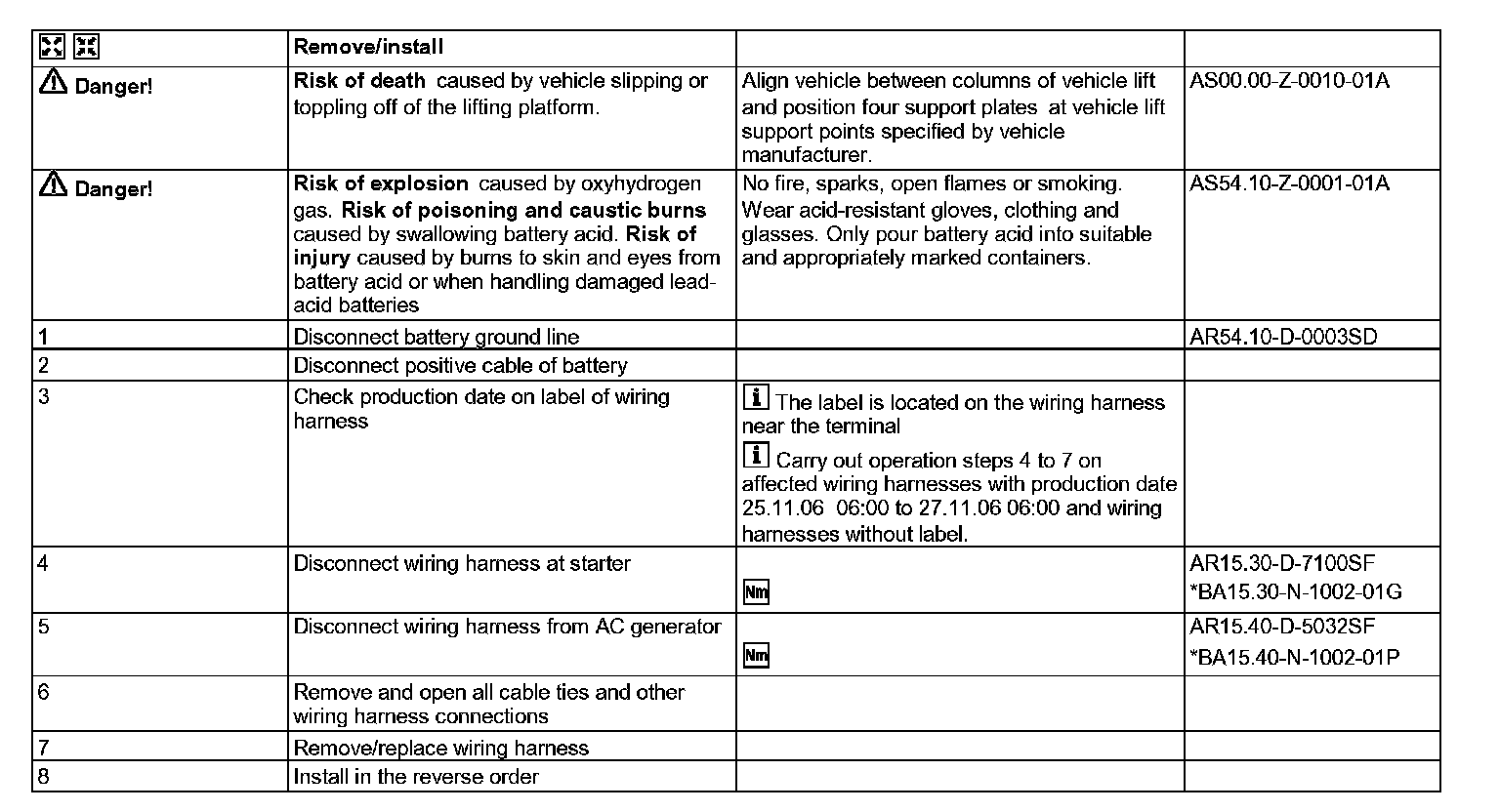

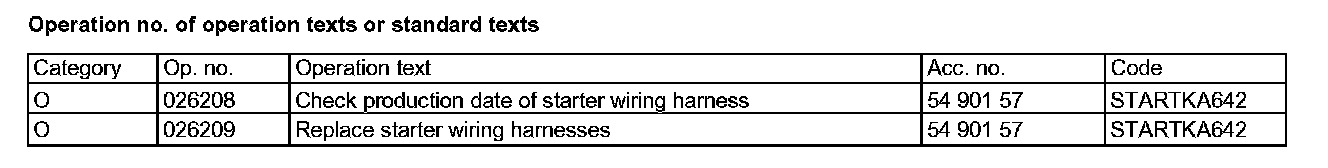

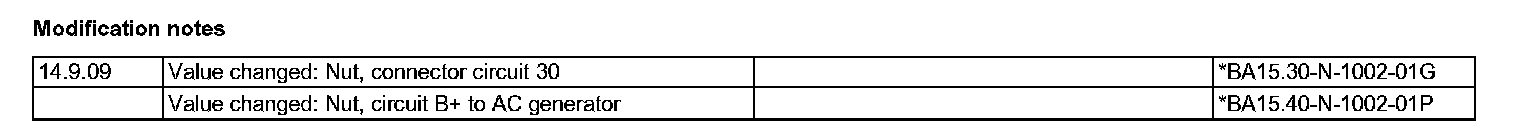

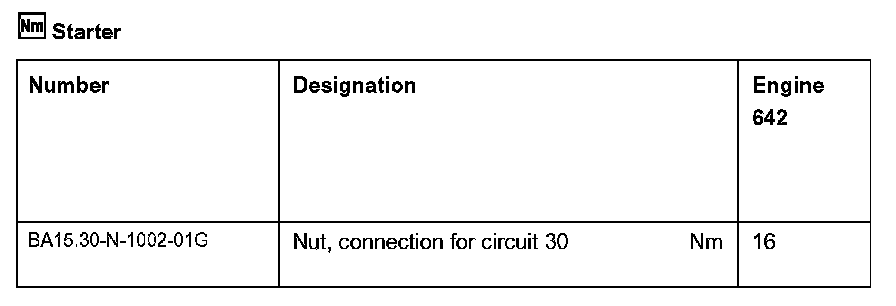

SM15.30-D-0003B Replace Starter Wiring Harness

SM15.30-D-0003B Replace Starter Wiring Harness
ENGINE 642 in MODEL 906.6## /7## ## as of 25.11.06 up to 145619
