Auxiliary Power Outlet: Service and Repair

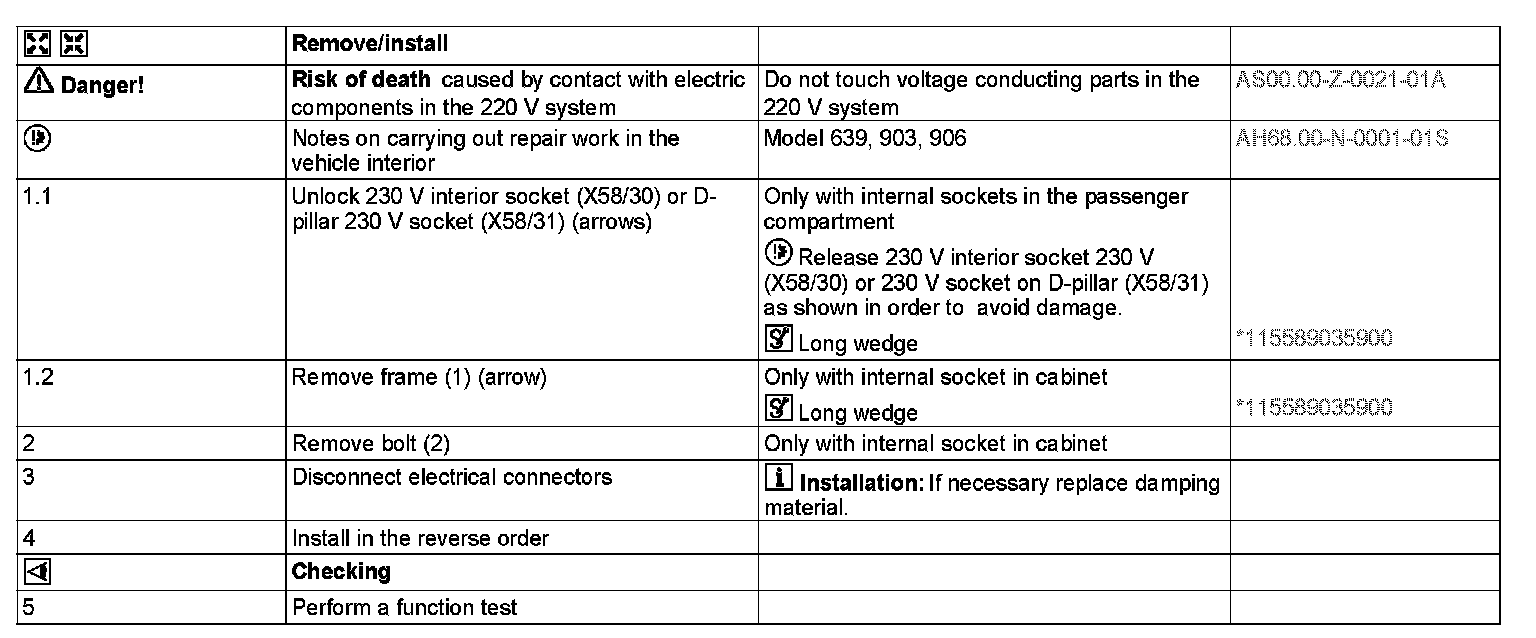

AR54.10-S-6573JC Remove/Install 220 V Internal Socket

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic

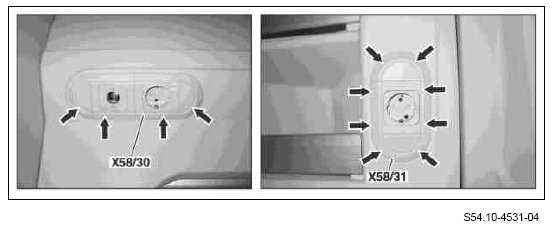

Shown: internal sockets in the passenger compartment
X58/30 230 V interior socket
X58/31 D-pillar 230 V socket

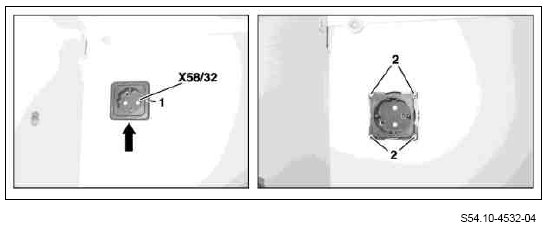

Shown: internal socket in cabinet
1 Frame
2 Bolts
X58/32 Microwave 230 V socket







115 589 03 59 00, Long wedge
