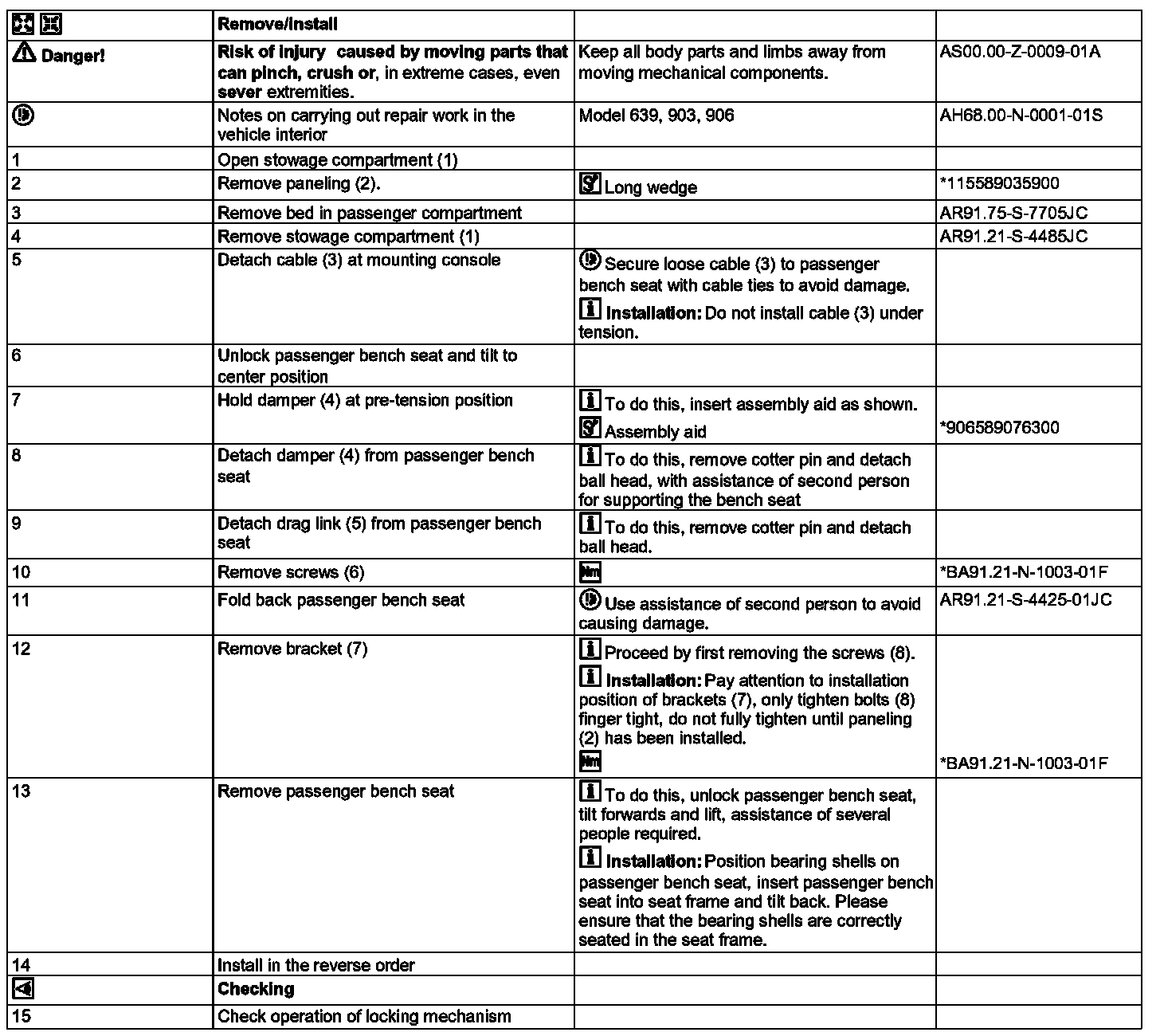

AR91.21-S-4425JC Remove/Install Passenger Bench Seat

AR91.21-S-4425JC Remove/Install Passenger Bench Seat

- with CODE (ZO1) Camper James Cook Compact
- with CODE (ZO2) Camper James Cook Classic







1 Stowage compartment
2 Trim Panels
3 Cable
4 Damper
5 Drag link
6 Bolts
7 Bracket
8 Bolts










115 589 03 59 00, Long wedge







906 589 07 63 00, Assembly aid
