Engine Control Module: Service and Repair
AR07.08-P-7008GZB Remove/Install Injection System
Control Unit

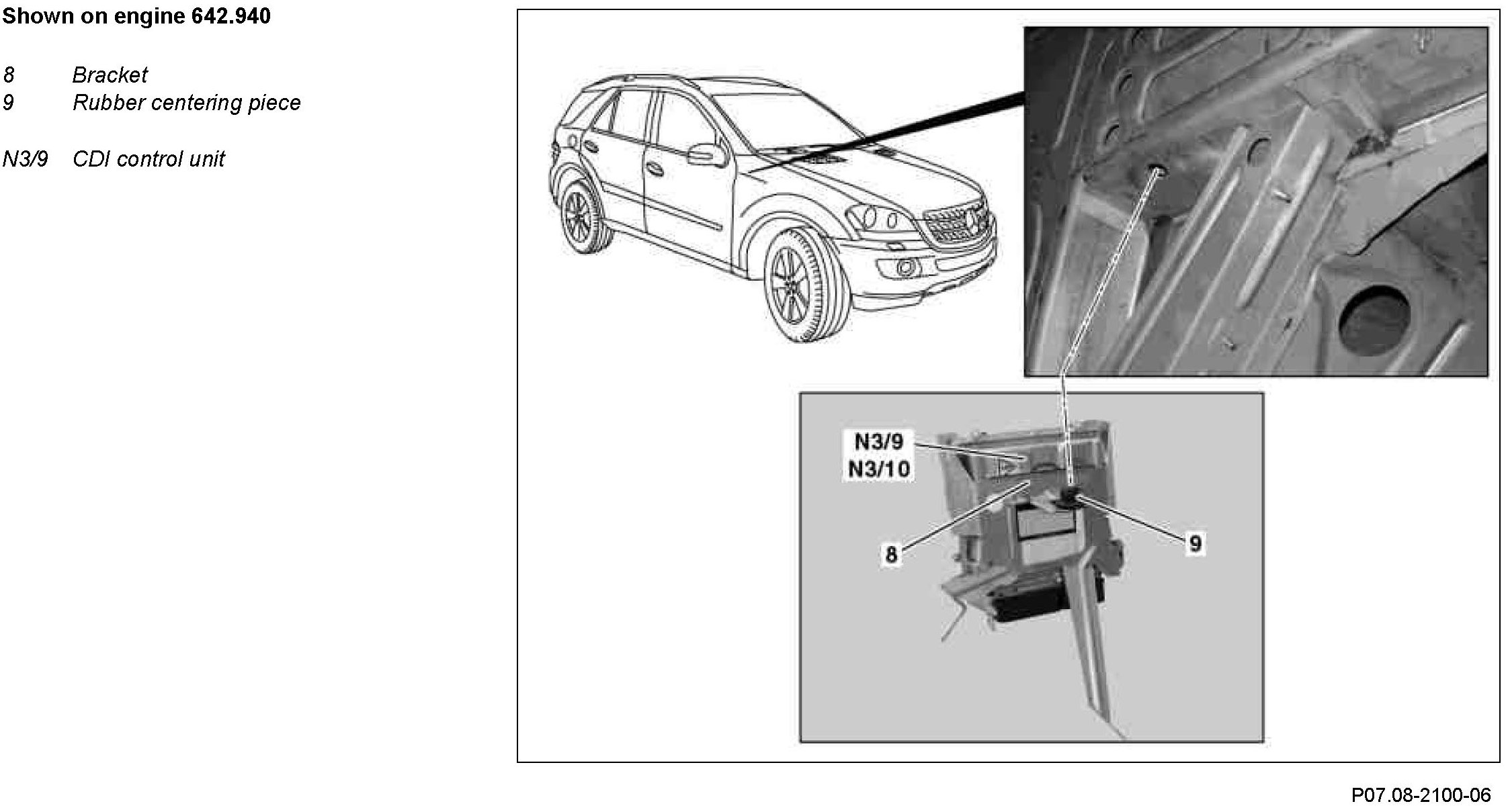

Component Identification:

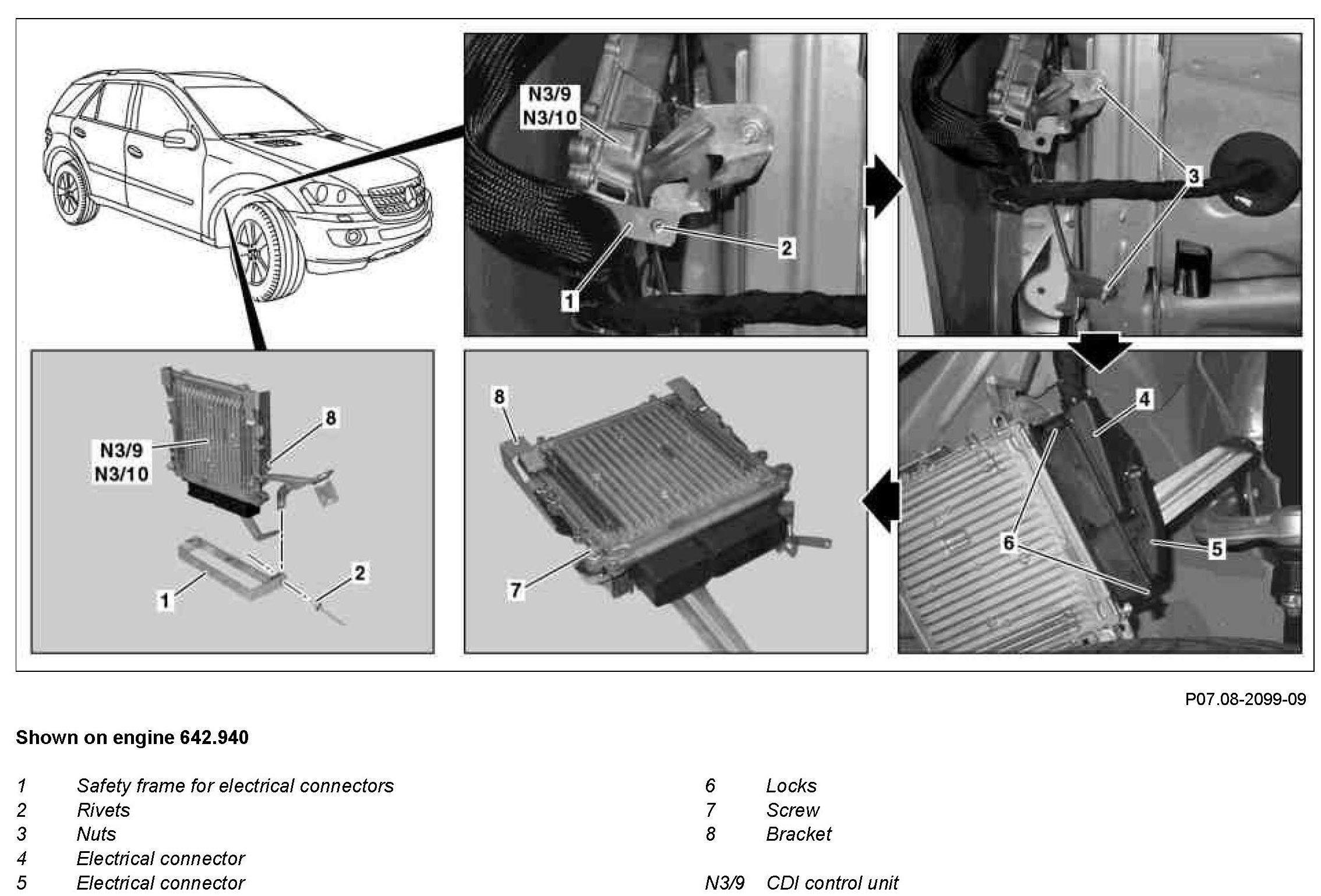

Component Identification:

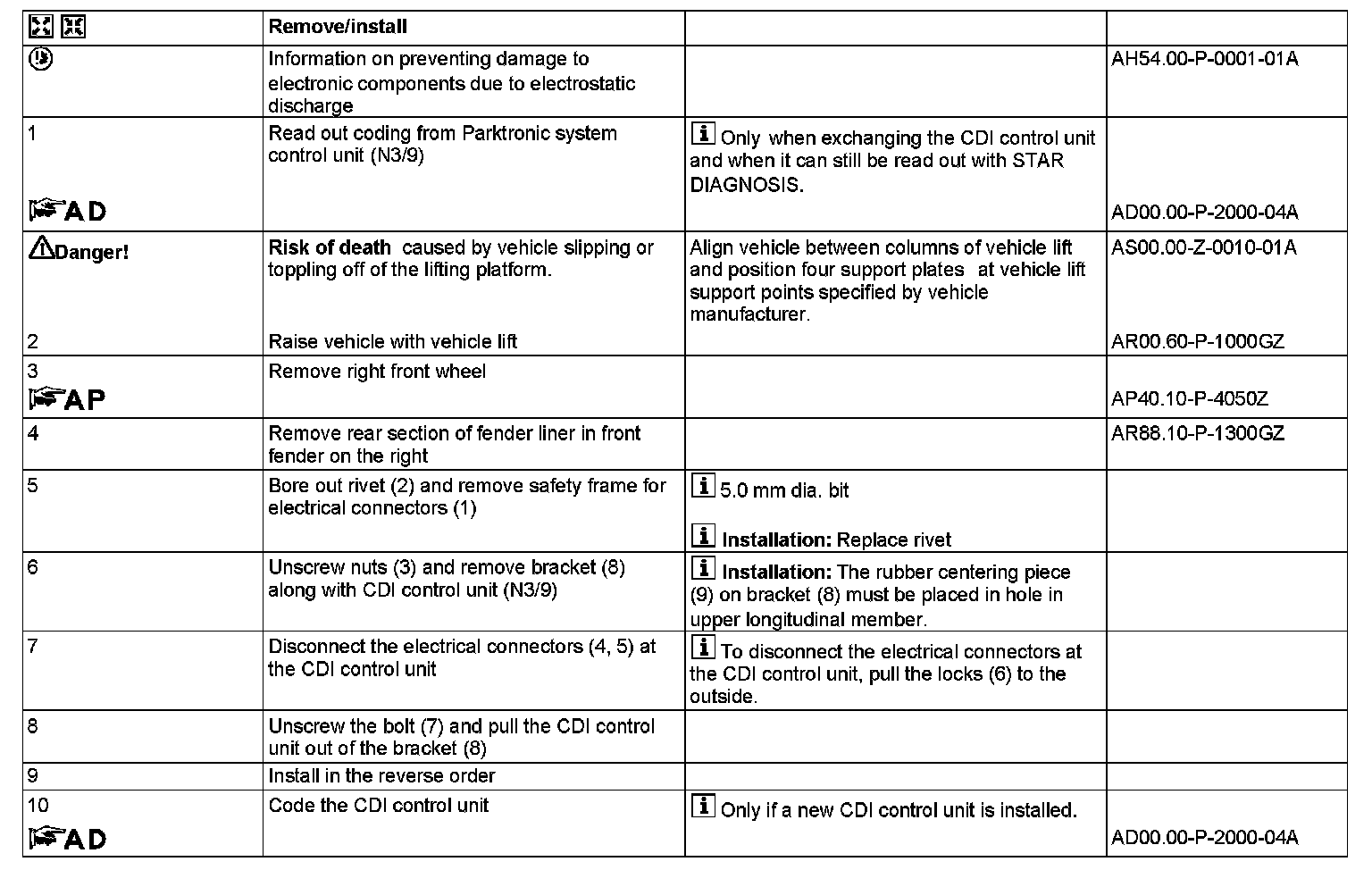

Steps 1 - 10:
