Home >> Mercedes Benz Truck >> 2010 >> ML 350 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Service and Repair >> AR72.29-P-0100GZ Remove/Install Front Door Power Window Switch

AR72.29-P-0100GZ Remove/Install Front Door Power Window Switch



AR72.29-P-0100GZ Remove/Install Front Door Power Window Switch
- Switch in front passenger door

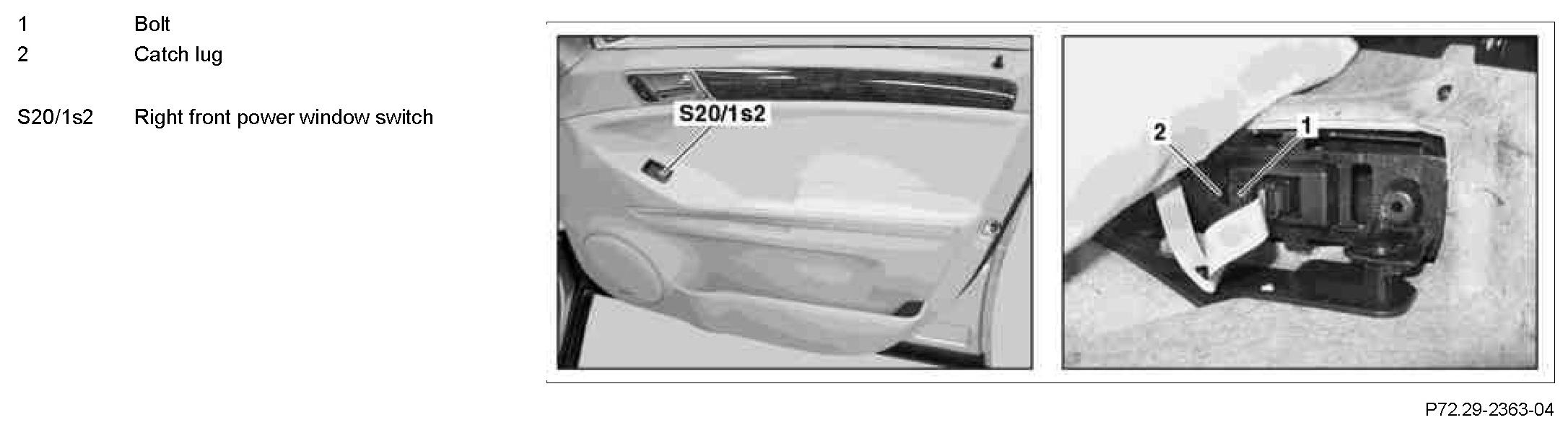

Component Identification:

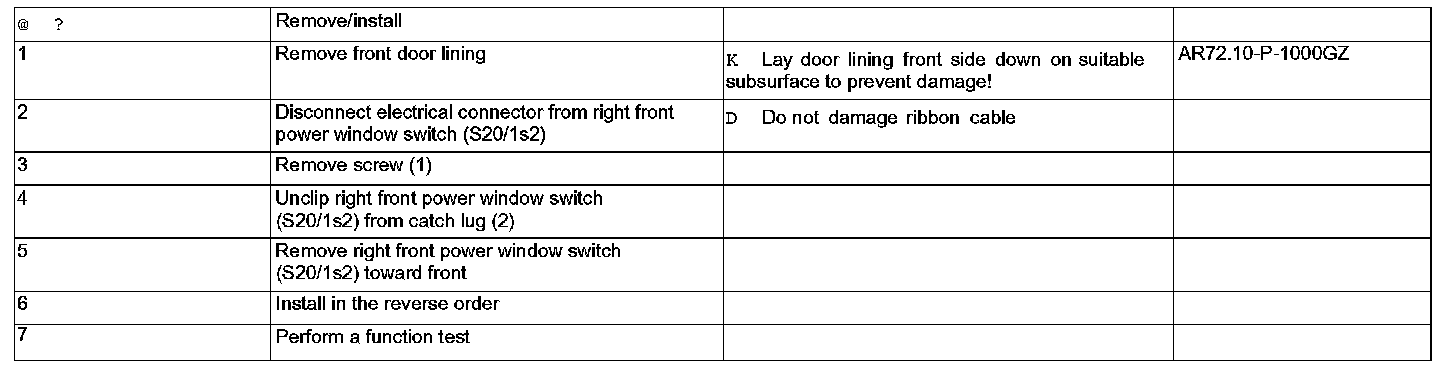

Steps 1 - 7:
